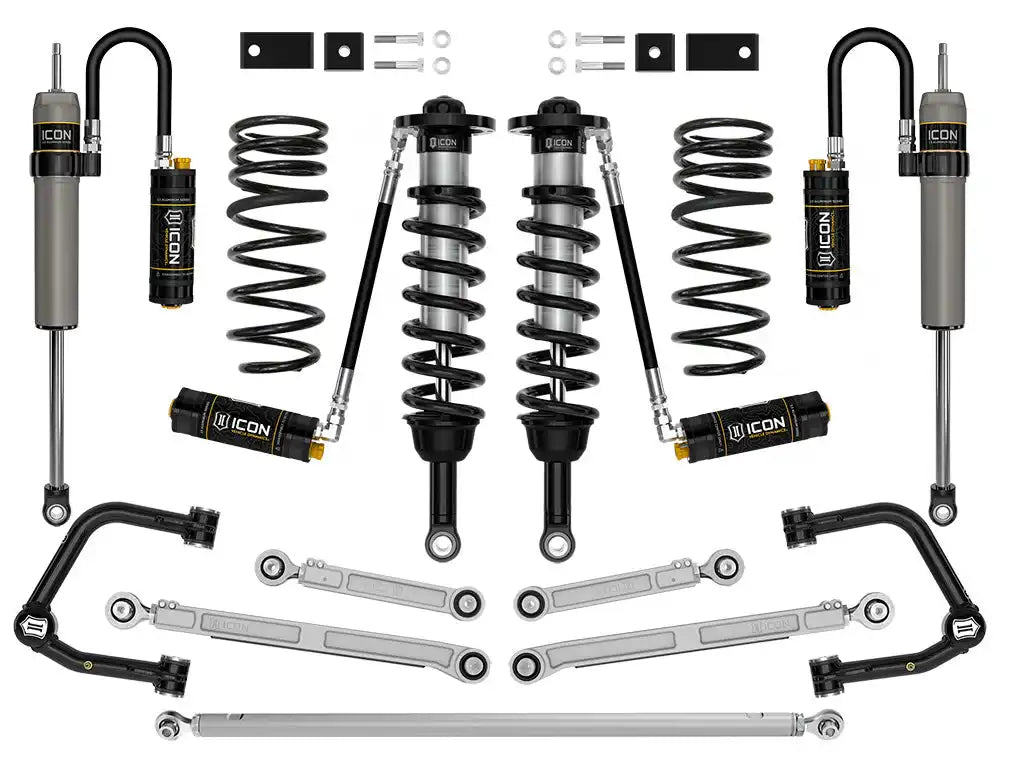

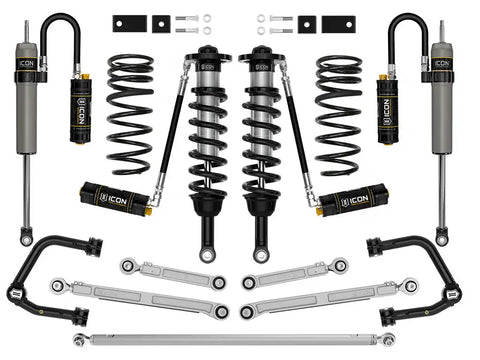

ICON Vehicle Dynamics FRDK_K53201TS ICON 22-23 Toyota Tundra 2-3.5" Lift Stage 11 (TRD) 2.5 Susp System Tubular
ICON Vehicle Dynamics FRDK_K53201TS ICON 22-23 Toyota Tundra 2-3.5" Lift Stage 11 (TRD) 2.5 Susp System Tubular

ICON Vehicle Dynamics FRDK_K53201TS ICON 22-23 Toyota Tundra 2-3.5" Lift Stage 11 (TRD) 2.5 Susp System Tubular

Vendor: ICON Vehicle Dynamics
SKU: FRDK_K53201TS
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$9,706.66 CAD
$10,829.13
$9,706.66 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x
Rounding out the Stage 11 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2023 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 2.5 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
  • Vehicle specific design for 2022-2023 Toyota Tundra
  • Triple rate rear coil springs improve performance and ride quality while providing .75" of rear lift (TRD models)
  • On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
  • 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
  • All ICON shock absorbers are fully rebuildable and re-tunable
  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
  • Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment

Attributes:

  • GTIN: 00840103421810
  • Brand Name: ICON Vehicle Dynamics
  • 2064: Steel
  • 2371: Yes
  • 30: Yes
  • 3096: Black
  • 3097: Yes
  • 3390: Performance
  • 7325: 2
  • 7326: 2
  • Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
  • Front Spring Rate Type: Linear
  • Maximum Lift Front: 3.5
  • Maximum Lift Rear: 1.25
  • OEM Wheels & Tires Fitment: Yes
  • Rear Spring Rate Type: Progressive Triple Rate
  • Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
  • Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 30.0000 x 13.0000 x 7.0000 inches
  • Weight: 211.0000 lb
