ICON Vehicle Dynamics 58552GDJ 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT GOLD ANO
Vendor:
ICON Vehicle Dynamics
SKU:
FRDK_58552GDJ
Availability:
3
In Stock
Product Type:
Suspension Control Arm Kit
- Regular price
- $1,912.04 CAD
- Regular price
-
$2,023.03 - Sale price
- $1,912.04 CAD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
Specifications:
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| 1260 | Yes |
| 10837 | Yes |
| 2354 | Performance |
| 9617 | Spring |
| Title | ICON 2024 Toyota Tacoma/2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550, Front, Billet Upper Control Arms w/ Delta Joint Pro, Gold Anodizing |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| 40 | Yes |
| Adjustable Control Arm | yes |
| 2811 | No |
| 2384 | Yes |
| 2382 | Press In |
| 2383 | Threaded |
| Bushing Color | Silver |
| 73 | Rod End Bearing |
| 2371 | Yes |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Color | Gold |
| Construction | Billet |
| 4888 | Gold |
| Control Arm Construction | Billet |
| 2389 | Aluminum |
| End 1 Type | Rod End Bearing |
| End 2 Type | BALL JOINT |
| Finish | Anodized |
| 3390 | Performance |
| 2339 | Yes |
| 10 | Aluminum |
| 92 | No |
| 30 | Yes |
| OEM Wheels & Tires Fitment | Yes |
| 10828 | Yes |
| 2330 | Yes |
| Quantity | Pair |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | ICON Alloys - 18" x 9" with 6.6" Backspace / 40mm Offset |
| Description_SHO | BILLET UCA KIT |
| Description_INV | 58552GDJ |
| Description_ASC | Factory Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5.75" Backspace / 25mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 6.6" Backspace / 40mm Offset |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | TECH NOTE: Compatible with 2024 Tacoma, Land Cruiser 250 Series, and GX550 equipped with 0-3” of front lift over stock |
| Description_ASC | TECH NOTE: Also available with classic satin silver anodized finish. See part number 58552DJ. |
| Description_DES | 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT GOLD ANO |
| Description_EXT | ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball. |

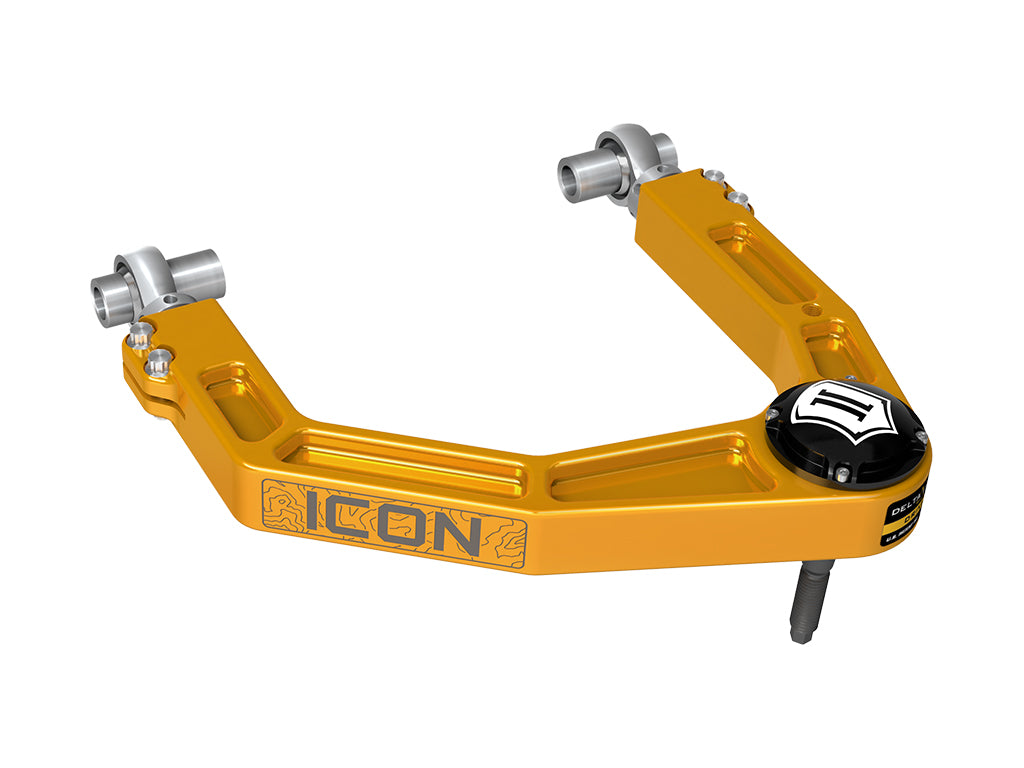

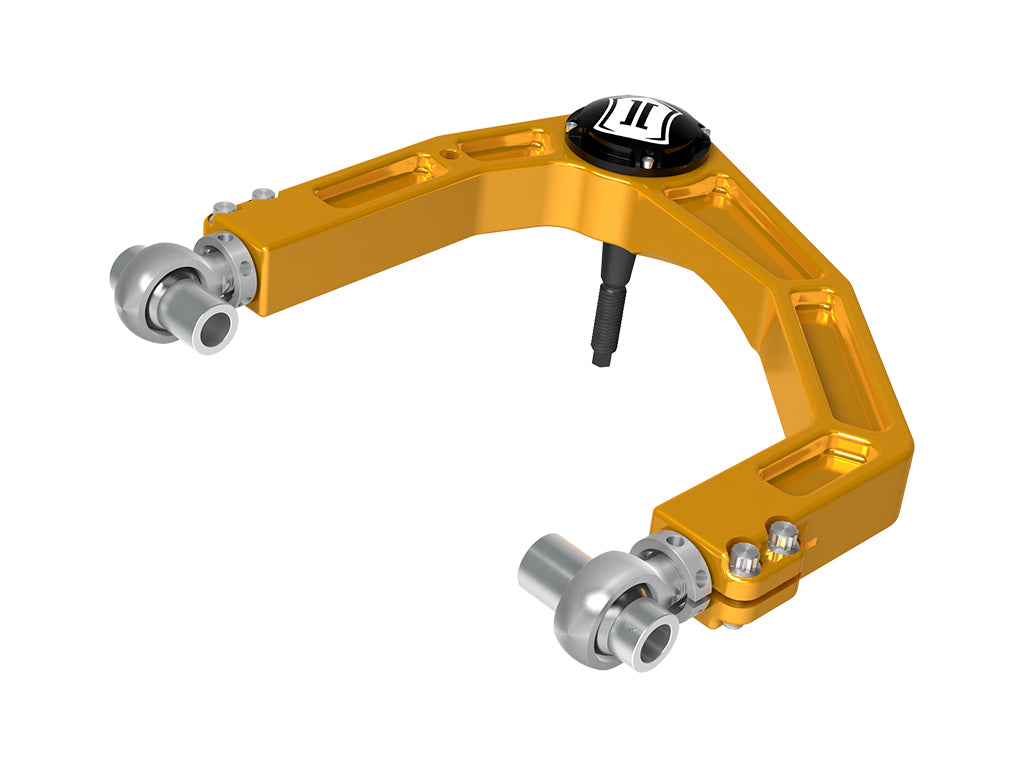

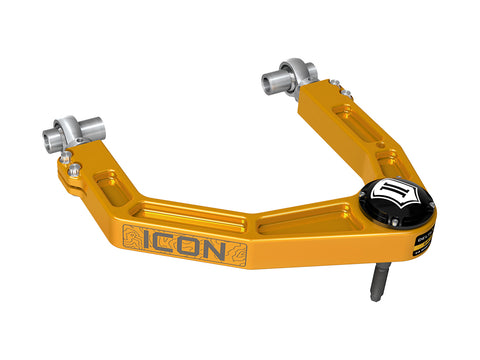

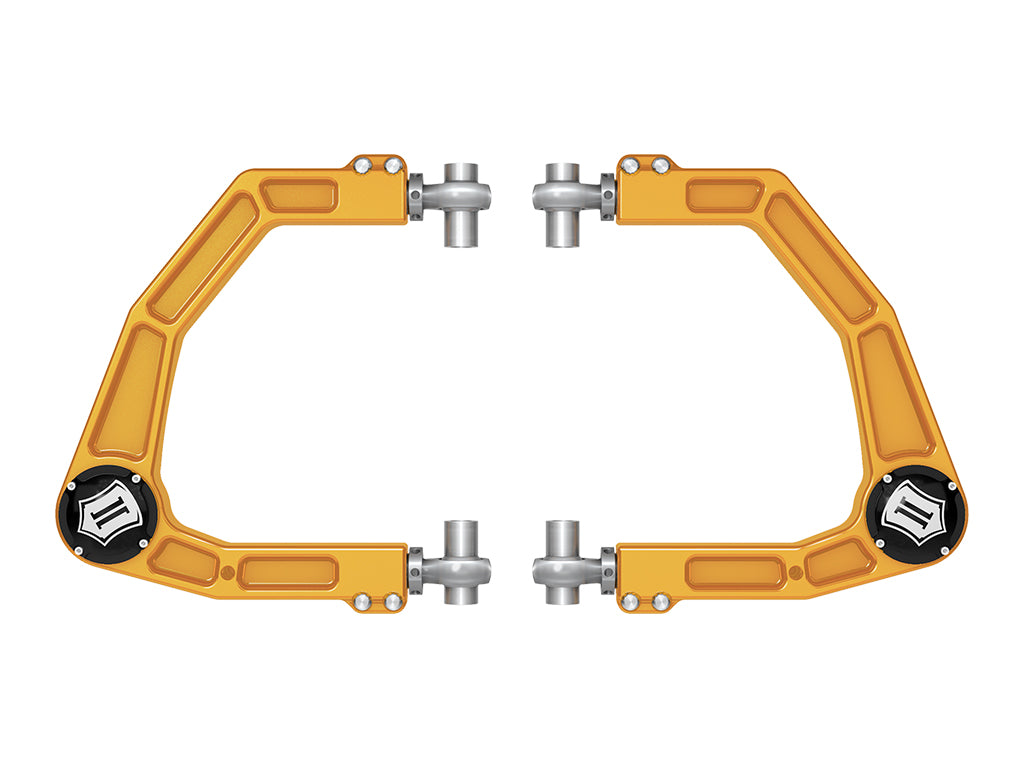

| Description_MKT | This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2024 Toyota Tacoma, 2024 Toyota Land Cruiser 250 Series, and the 2024 Lexus GX550 with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” Heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. An all-new gold anodized finish matches ICON shock absorbers for a splash of color in the wheel well and provide a custom look to any build. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for your 2024 Toyota Tacoma, Toyota Land Cruiser, or Lexus GX550. |
| Description_MKT | ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal. |
| Description_FAB | CNC machined 6061 billet aluminum construction |
| Description_FAB | Gold anodized finish |
| Description_FAB | Corrects suspension geometry and allows for proper wheel alignment on Tacomas with up to 3” of lift |
| Description_FAB | Quick, precise, on-vehicle adjustment for both caster and camber |
| Description_FAB | Delta Joint PRO allows maximum articulation without binding |
| Description_FAB | Delta Joint PRO is 100% serviceable and rebuildable |
| Description_FAB | FK Rod Ends at chassis pivots for strength and precision driving characteristics |
| Description_FAB | Built in O-ring sealed dust cover cap |
| Description_TLE | ICON 2024 Toyota Tacoma/2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550, Front, Billet Upper Control Arms w/ Delta Joint Pro, Gold Anodizing |
| Description_APS | ICON 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT GOLD ANO |
| Description_DEF | Suspension Control Arm Kit |
