ICON Vehicle Dynamics K63174 23 FORD F250/F350 4-5.5" STAGE 4 COILOVER CONVERSION SYSTEM
Vendor:
ICON Vehicle Dynamics
SKU:
FRDK_K63174
Availability:
Out of stock. Chat\Call to Order
Product Type:
Suspension Lift Kit
- Regular price
- $10,267.09 CAD
- Regular price
-
$8,795.22 - Sale price
- $10,267.09 CAD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xThis suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.
Specifications:
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 66518 - 23-24 FSD 4WD 4.5" FRONT 2.0 VS IR |
| Add-On Part | 67811P - 23-24 FSD 4.5" FRONT 2.5 VS RR PAIR |
| Add-On Part | 611003 - 2.5 RESI DOUBLER MOUNT 7.5" KIT |
| Add-On Part | 66518R - 23-24 FSD 4WD 4.5" FRONT 2.0 VS RR |
| Add-On Part | 67811CP - 23-24 FSD 4.5" FRONT 2.5 VS RR CDCV PAIR |
| Adjustable Damping | No |
| 2371 | Yes |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Quantity Front | 2 |
| 7325 | 2 |
| Front Spring Rate Type | Linear |
| 3390 | Performance |
| 5773 | Black |
| 5772 | Steel |
| Maximum Lift Front | 6 |
| Maximum Lift Rear | 2 |
| Minimum Lift Front | 3 |
| 30 | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| 3097 | Yes |
| 3096 | Black |
| 2064 | Steel |
| Title | ICON 2023 Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 4 Coilover Conversion System |
| Description_DES | 23 FORD F250/F350 4-5.5" STAGE 4 COILOVER CONVERSION SYSTEM |
| Description_EXT | ICON 4.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market. |
| Description_MKT | This ICON Vehicle Dynamics 4-5.5” coilover conversion system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 4 system is perfect for on-road and towing use, as well as job site duty, washboard gravel roads, and more agressive off-road adventures. |
| Description_MKT | ICON's 4-5.5” Lift Stage 4 Coilover Conversion System features 2.5 Series remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location, effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics. ICON’s dual opposing steering stabilizer kit featuring ICON 2.0 Aluminum Series shocks improves steering damping to better control undesirable steering feedback caused by larger tires. Heavy-duty fabricated 5" rear blocks and U-bolt kit lift the rear of the vehicle and are designed to withstand heavy towing/hauling duty as well as the stresses of aggressive off-road use. ICON 2.5 Aluminum Series piggyback reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines. |
| Description_MKT | This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market. |

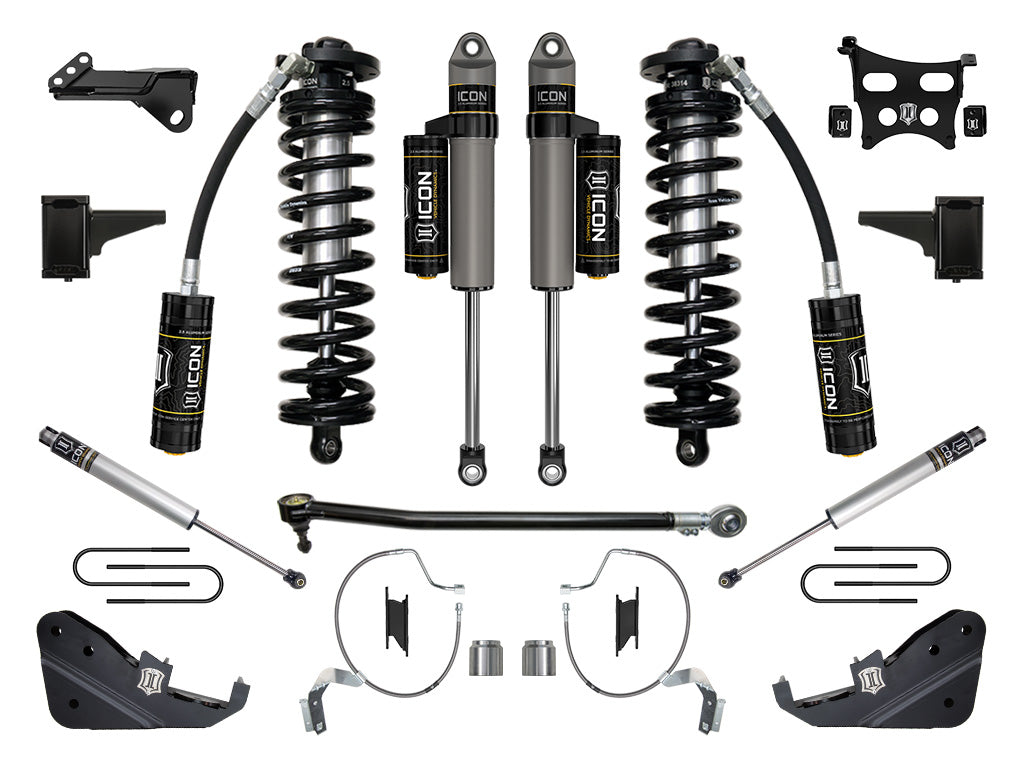

| Description_FAB | Fits 2023 F-250 / F-350 4WD applications |
| Description_FAB | Bolt-in system fits in OE coil bucket location |
| Description_FAB | Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift |
| Description_FAB | Vehicle-specific shock valving provides unparalleled ride quality and control |
| Description_FAB | ICON 2.5 Aluminum Series piggyback reservoir rear shocks |
| Description_FAB | Increased wheel travel and ride quality over stock |
| Description_FAB | Radius arm drop brackets correct geometry and caster for optimal alignment specs |
| Description_FAB | Track bar drop bracket reduces track bar angle and corrects bump steer geometry |
| Description_FAB | Adjustable track bar allows fine tuning of track alignment and improves handling characteristics |
| Description_FAB | Dual steering stabilizer kit offers increased steering damping |
| Description_FAB | Corrosion resistant anodized steering stabilizer shock bodies with 5/8" shafts |
| Description_FAB | Stainless steel braided front brake lines |
| Description_FAB | Heavy-duty fabricated rear lift blocks |
| Description_FAB | Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts |
| Description_FAB | Corrosion resistant hard anodized rear shock bodies with 7/8" shafts |
| Description_FAB | Shocks are fully rebuildable and re-tunable |
| Description_FAB | Lifetime guarantee against coil spring breakage or sagging |
| Description_FAB | Lifetime guarantee against ICON fabricated component breakage or manufacturer defect |
| Description_TLE | ICON 2023 Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 4 Coilover Conversion System |
| Description_APS | ICON 23 FORD F250/F350 4-5.5" STAGE 4 COILOVER CONVERSION SYSTEM |
| Description_SHO | SUSPENSION SYSTEM |
| Description_INV | K63174 |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| Description_ASC | APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. |
| Description_ASC | APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation |
| Description_ASC | APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel |
| Description_ASC | APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details |
| Description_ASC | APPLICATION NOTE #151: Fits single rear wheel models only |
| Description_ASC | TECH NOTE: Will not fit 2024 models |
| Description_ASC | TECH NOTE: Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock |
| Description_DEF | Suspension Lift Kit |
| Description_ASC | TECH NOTE: Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock |
| Description_ASC | TECH NOTE: Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock |
| Description_ASC | TECH NOTE: Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock |
| Description_ASC | TECH NOTE: Will not fit F-350 Cab & Chassis models |
| Description_ASC | TECH NOTE: If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required |
| Description_ASC | TECH NOTE: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service. |
