MAXWELL HRC101012VLP HRC SER.1870# 3/8'CHAIN 12V NO CAP.
MAXWELL HRC101012VLP HRC SER.1870# 3/8'CHAIN 12V NO CAP.
MAXWELL HRC101012VLP HRC SER.1870# 3/8'CHAIN 12V NO CAP.

MAXWELL HRC101012VLP HRC SER.1870# 3/8'CHAIN 12V NO CAP.

Vendor: MAXWELL
SKU: MXWC101012VLP
Availability: 1 In Stock
$4,882.64 CAD
$6,851.23
$4,882.64 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x

Attributes

  • Mount Type: Horizontal, above deck, without capstan
  • Maximum Pull: 1870 Pound
  • Maximum Line Speed: Not given
  • Size: 14.6"L x 8.9"W x 7.9"H; Wt: 25 lbs
  • Chain/ Rope Size: 5/16"; 9/16"-5/8"
  • Voltage Rating: 12 VDC
  • Motor Power: 1200 Watt

Product Description

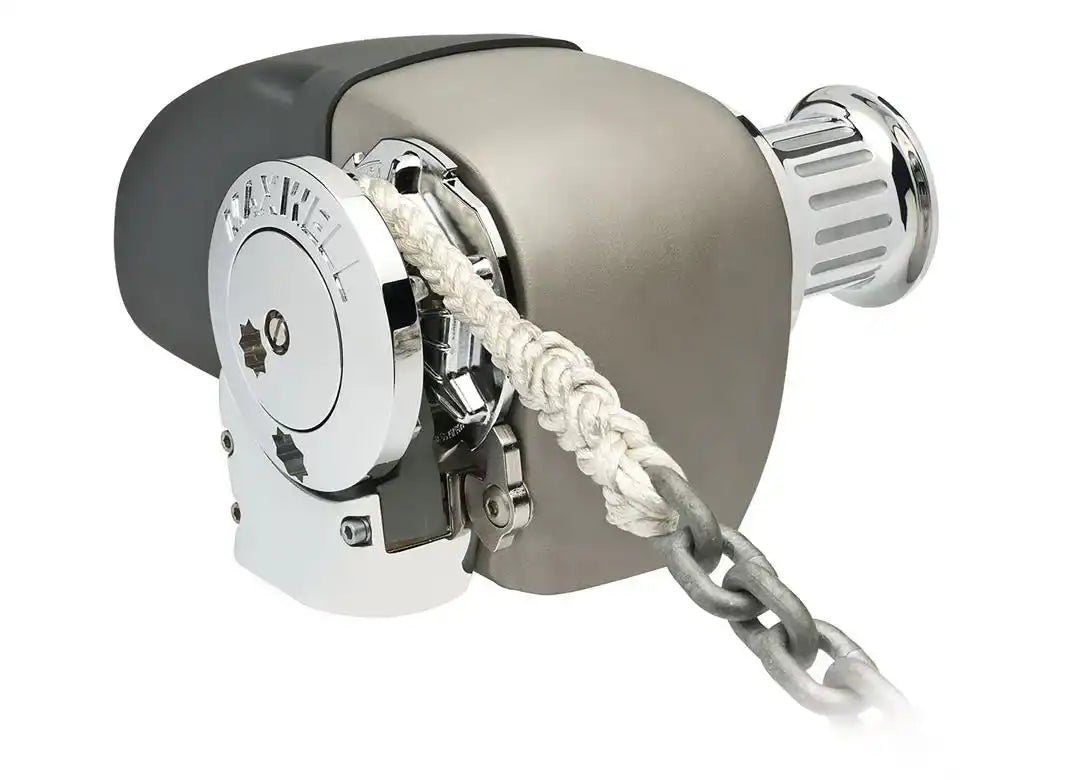

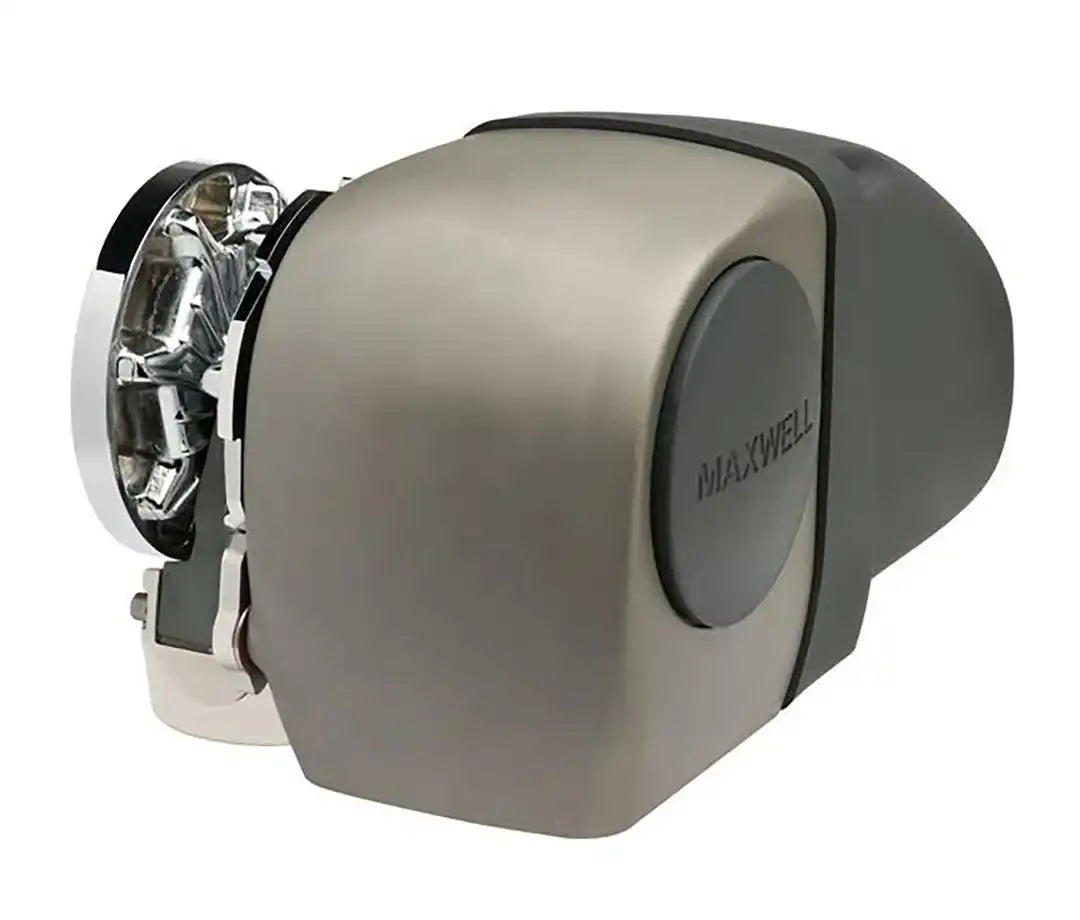

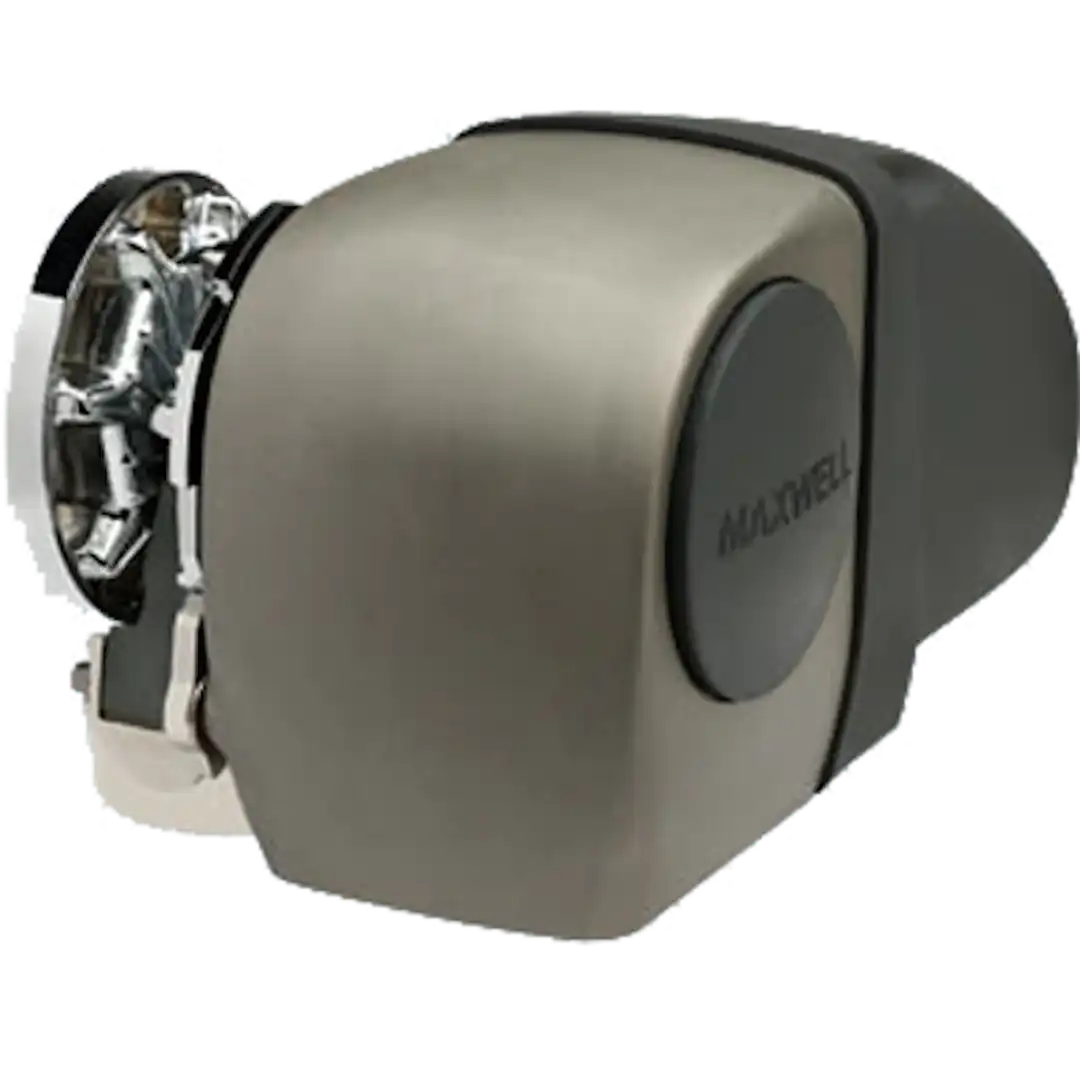

HRC 10 Rope/Chain SeriesHorizontal Above-Deck Rope/Chain WindlassMaxwell's all new HRC10 Horizontal Series represents yet another breakthrough in performance and anchor handling excellence. These horizontal, fully automatic rope/chain windlasses have been designed to meet the demands for use on larger vessels up to 16 metres (52 feet), which require a completely above deck installation system. The HRC10 flawlessly handles rope up to 16mm (5/8") and chain up to 10mm (3/8") in size, including the thick rope to chain splice. The modern appearance of the HRC10 Series retains the classic good looks of previous Maxwell horizontal windlasses, while incorporating design features years ahead of its competitors.All HRC Series Windlasses Are Fitted With Maxwell's Unique Wave Design Chainwheel.This patented rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval. As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a 'wave pattern' action that is far superior to the traditional 'jam cleat' manner of holding the rope. Not only does this Wave Design hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode.

Features & Benefits

  • The aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deck
  • The two part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section
  • This two piece watertight case allows for quick and easy, on-deck, routine maintenance; Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up
  • The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain)
  • The new and revolutionary patented Wave Design chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters
  • The unique Maxwell "wrap around" horizontal chainwheel ensures that more than 90° of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs
  • The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker
  • Cone type clutch/brake mechanism permits manual, "free fall" anchoring and emergency crank recovery of the rode and anchor if required
  • The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel
  • Limited 3 Year Warranty
