Painless Wiring 10114 28 Circuit Direct Fit Harness; w/o Switches;

Vendor: Painless Wiring
SKU: DHDT_10114
Availability: 5 In Stock
Product Type: Chassis Wiring Harness
$1,487.02 CAD
$894.99
$1,487.02 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
* Images may differ from actual product.
Description
Description
x

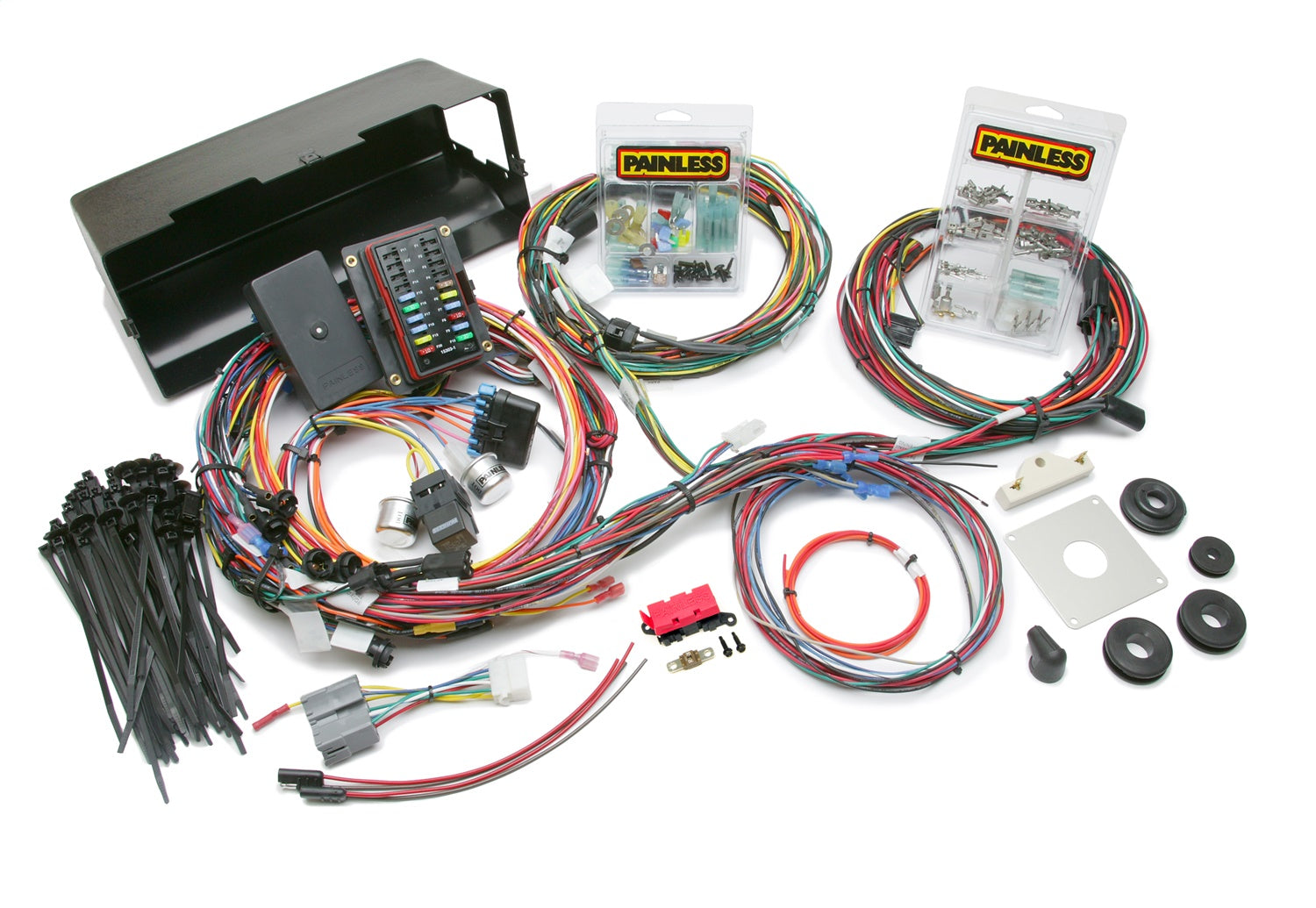

Painless Performance 28-Circuit 1966-77 Bronco chassis harnesses were designed with input from Bronco owners everywhere, this 28 circuit direct fit 1966-1977 Bronco harness sets a new standard in wiring. These harnesses include molded plastic glove boxes that not only replace the factory cardboard one, it also mounts a weatherproof fuse block. You'll also find factory-style molded exterior light connectors, Ford turn signal connectors and a Ford dimmer switch connector. Most of the factory connections are already pre-terminated and include an 80 page full color step by step install manual with over 80 photos, drawings and harness schematics. Each wire is custom printed with the circuit identification as well as using Ford color codes for easy installation.


Specifications:

Type 28 Circuit
WARNING CA Proposition 65 Yes
WARNING CA Proposition 65 Message WARNING: This product can expose you to Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Description_DES 28 Circuit Direct Fit Harness
Description_EXT 28 Circuit Direct Fit Harness; w/o Switches;
Description_FAB Weatherproof Fuse Block w/Clear O Ring Seal Cover
Description_FAB Weatherproof Heat Sealed Crimp On Terminals
Description_FAB Waterproof Horn Relay
Description_FAB Machine Crimped Splices w/Shrink Tubing
Description_FAB Guaranteed For Life
Description_MKT Painless Performance 28-Circuit 1966-77 Bronco chassis harnesses were designed with input from Bronco owners everywhere, this 28 circuit direct fit 1966-1977 Bronco harness sets a new standard in wiring. These harnesses include molded plastic glove boxes that not only replace the factory cardboard one, it also mounts a weatherproof fuse block. You'll also find factory-style molded exterior light connectors, Ford turn signal connectors and a Ford dimmer switch connector. Most of the factory connections are already pre-terminated and include an 80 page full color step by step install manual with over 80 photos, drawings and harness schematics. Each wire is custom printed with the circuit identification as well as using Ford color codes for easy installation.
Description_SHO Chassis Wire Harness
