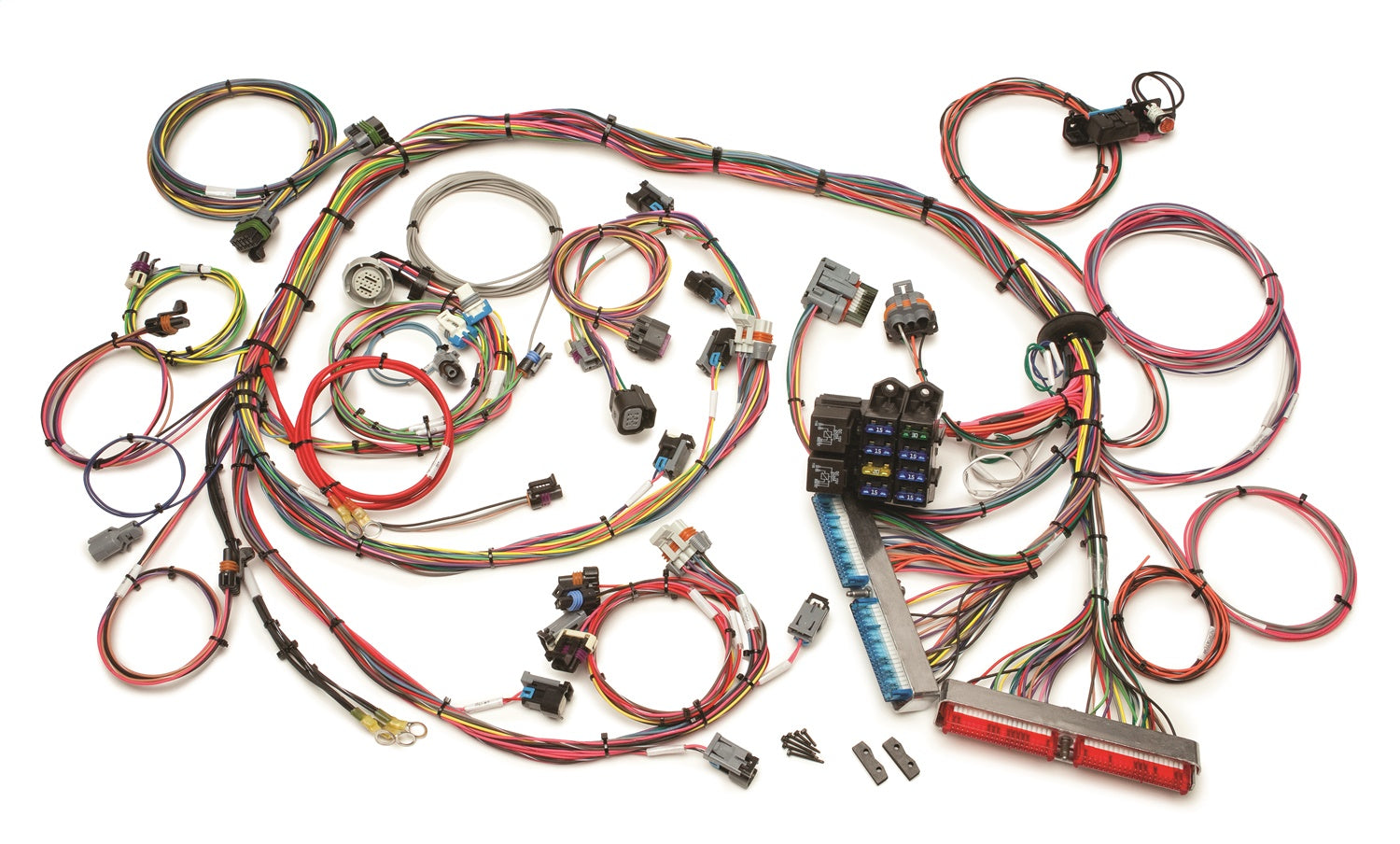

Painless Wiring 60520 Fuel Injection Wiring Harness

Vendor: Painless Wiring
SKU: DHDT_60520
Availability: Out of stock. Chat\Call to Order
Product Type: Fuel Injection Harness
$1,116.99 CAD
$949.74
$1,116.99 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x
This harness is designed for the 1999-2006 4.8L, 5.3L, 6.0L mechanical throttle body engines using an LS1 / LS6 PCM with a 4L60E, 4L65E, 4L70E, 4L80E, 4L85E, or manual transmission. 2003-2006 Engines will require a mechanical throttle body to be installed. 2003-2006 engines which were originally flex fuel will also require Delphi Multec 2 (factory truck style) injectors to be installed. Included with this harness is a 10 circuit weatherproof fuse block and GM color coded wires with labels for easy installation. This standard length harness allows four feet from the back of the intake manifold to where the fuse block and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box. Please note that this harness does not support Flex Fuel USCAR Injectors.The Fuse Block Protects The Following Circuits: Air Pump & Air Pump Solenoid, Canister Purge, Canister Vent, Transmission, & Park Neutral Position Switch, Driver Side Injectors and Coils, Dual 40 amp Ignition Relays, Fuel Pump, Heated O2 Sensors, Mass Airflow Sensor, & Brake Switch, Pass Side Injectors and Coils, ECM B+ & DLC B+, ECM IGN and Malfunction Indicator Lamp. This harness includes connections for the following components: A/C Request, Air Pump, Air Pump Relay, Air Pump Solenoid, Alternator , Brake Switch, Cam Position Sensor, Canister Purge, Canister Vent, Crank Position Sensor, Data Link Connector , Driver/Pass Front O2 Sensors, EGR Valve, Engine Coolant Temperature, Fan #1 Relay Ground ECM Activation, Fan #2 Relay Ground ECM Activation, Fuel Pump, Fuel Pump Relay, Fuel Pump Test , Grounds , Idle Air Control, Ignition Coils, Ignition Switch Signal, Injectors, Input Speed Sensor, Knock Sensors, Malfunction Indicator Lamp, MAP Sensor, Mass Airflow Sensor & Intake Air Temperature Sensor, Output Speed Sensor, Park/Neutral Switch, ECM, Reverse Lights, Starter, Starter Relay, Tachometer, Throttle Position Sensor, Transmission VSS Output for Speedometer.


Specifications:

WARNING CA Proposition 65 Yes
WARNING CA Proposition 65 Message WARNING: This product can expose you to Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Description_DES Fuel Injection Wiring Harness
Description_EXT Fuel Injection Wiring Harness; Throttle By Wire; Standard Length; w/24X Crank Reluctor;
Description_FAB 24X Crank Sensor ONLY
Description_FAB Refer To Catalog Or Website For Further Details
Description_FAB Superior Circuit Protection
Description_FAB Highest Quality Wire You Can Buy
Description_FAB Color Coded Preprinted Wire
Description_FAB Comprehensive Instructions And Tech Support
Description_FAB Guaranteed For Life
Description_MKT This harness is designed for the 1999-2006 4.8L, 5.3L, 6.0L mechanical throttle body engines using an LS1 / LS6 PCM with a 4L60E, 4L65E, 4L70E, 4L80E, 4L85E, or manual transmission. 2003-2006 Engines will require a mechanical throttle body to be installed. 2003-2006 engines which were originally flex fuel will also require Delphi Multec 2 (factory truck style) injectors to be installed. Included with this harness is a 10 circuit weatherproof fuse block and GM color coded wires with labels for easy installation. This standard length harness allows four feet from the back of the intake manifold to where the fuse block and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box. Please note that this harness does not support Flex Fuel USCAR Injectors.The Fuse Block Protects The Following Circuits: Air Pump & Air Pump Solenoid, Canister Purge, Canister Vent, Transmission, & Park Neutral Position Switch, Driver Side Injectors and Coils, Dual 40 amp Ignition Relays, Fuel Pump, Heated O2 Sensors, Mass Airflow Sensor, & Brake Switch, Pass Side Injectors and Coils, ECM B+ & DLC B+, ECM IGN and Malfunction Indicator Lamp. This harness includes connections for the following components: A/C Request, Air Pump, Air Pump Relay, Air Pump Solenoid, Alternator , Brake Switch, Cam Position Sensor, Canister Purge, Canister Vent, Crank Position Sensor, Data Link Connector , Driver/Pass Front O2 Sensors, EGR Valve, Engine Coolant Temperature, Fan #1 Relay Ground ECM Activation, Fan #2 Relay Ground ECM Activation, Fuel Pump, Fuel Pump Relay, Fuel Pump Test , Grounds , Idle Air Control, Ignition Coils, Ignition Switch Signal, Injectors, Input Speed Sensor, Knock Sensors, Malfunction Indicator Lamp, MAP Sensor, Mass Airflow Sensor & Intake Air Temperature Sensor, Output Speed Sensor, Park/Neutral Switch, ECM, Reverse Lights, Starter, Starter Relay, Tachometer, Throttle Position Sensor, Transmission VSS Output for Speedometer.
Description_SHO FuelInjWireHrns
