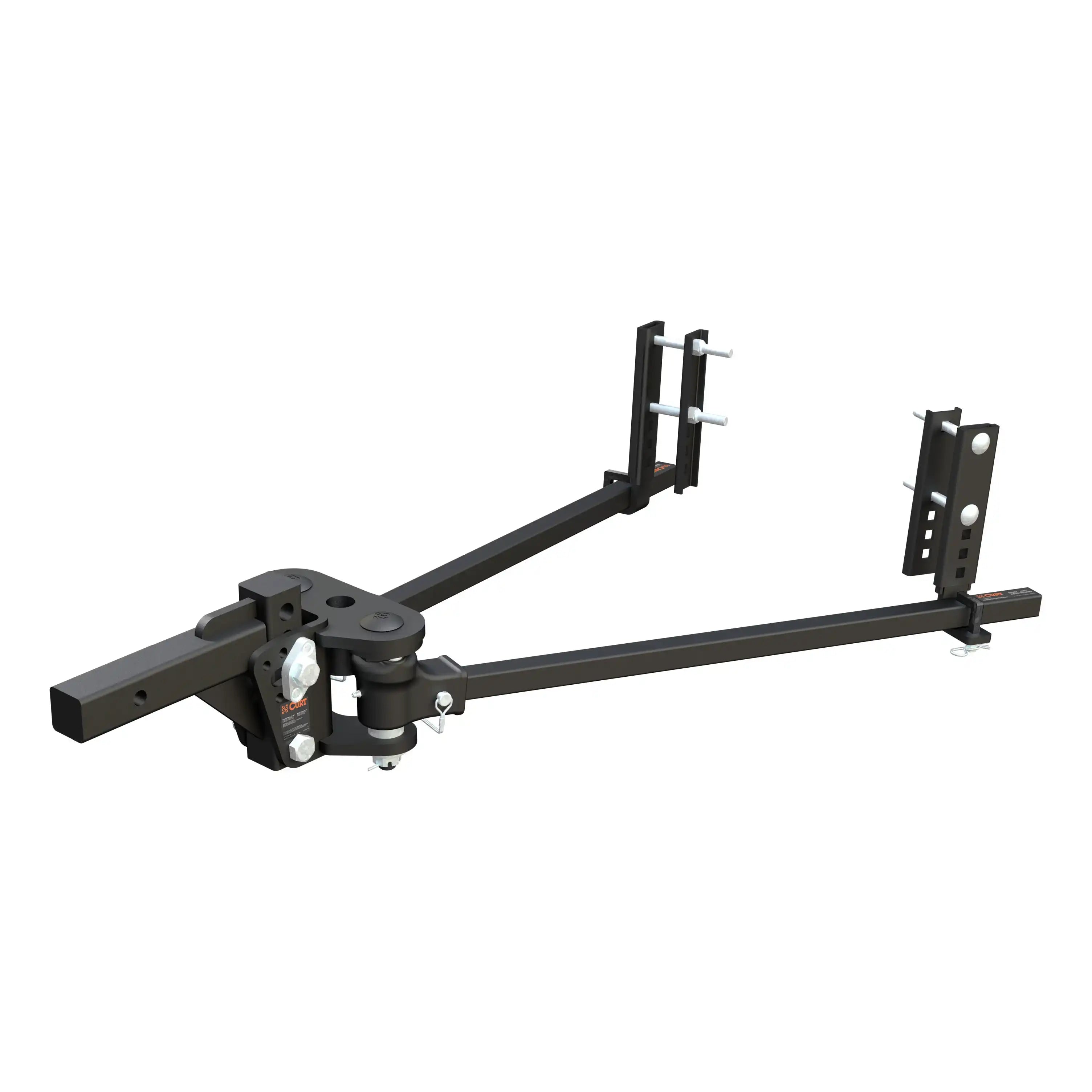

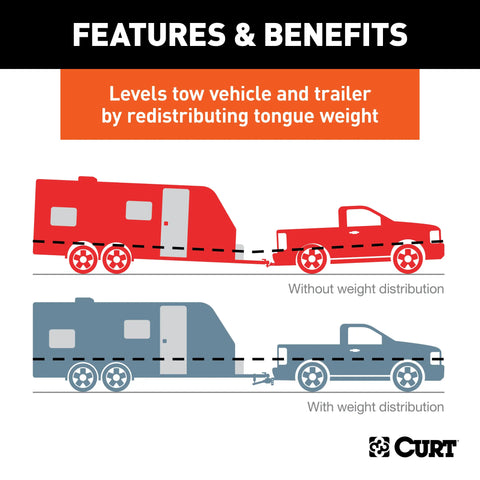

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible. This, coupled with the easiest setup in the industry, truly makes the TruTrack unparalleled in its class. Like all WD hitches, the TruTrack 4P uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. The TruTrack also features a unique spring and cam system that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened components are less subject to wear and last longer than competitor models. Setting up the light-duty TruTrack WD hitch is faster and easier. While other WDs use washers and blind guesswork to find the proper tilt, the TruTrack employs interlocking nuts and six preset holes to provide specific angles of tilt and a simpler adjustment method. Unlike most WD hitches that require you to partially disassemble the hitch head to make adjustments, the interlocking nuts can easily be accessed on the outside of the head, making installation fast and adjustment easy (NOTE: Trailer ball not included). In addition to its integrated sway control and easy setup, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers, car haulers and other heavy-duty trailers.

Attributes

• Type: Trunnion Bar

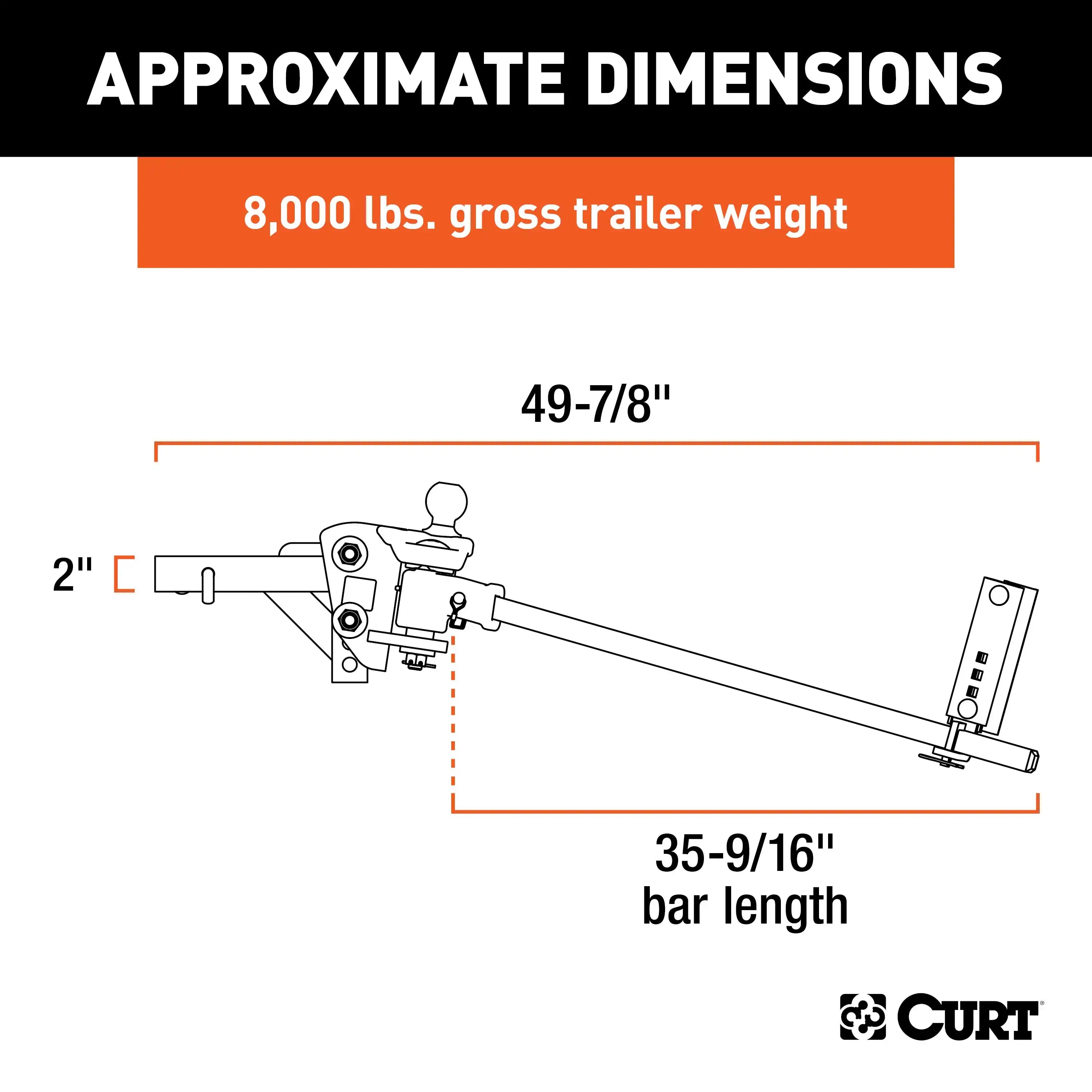

• Gross Trailer Weight (LB): 8000 Pound
• Gross Tongue Weight (LB): 800 Pound
• Color/ Finish: Black Powder Coated
• Drop (IN): 2 Inch
• Rise (IN): 2 Inch
• Includes Sway Control: With Built-In Sway Control
• Includes Shank: Yes
• Shank Length: 12 Inch
• Includes Ballmount: Yes
• Includes Ball: No
• Universality: Fully Universal
• Material: Steel

Features & Benefits

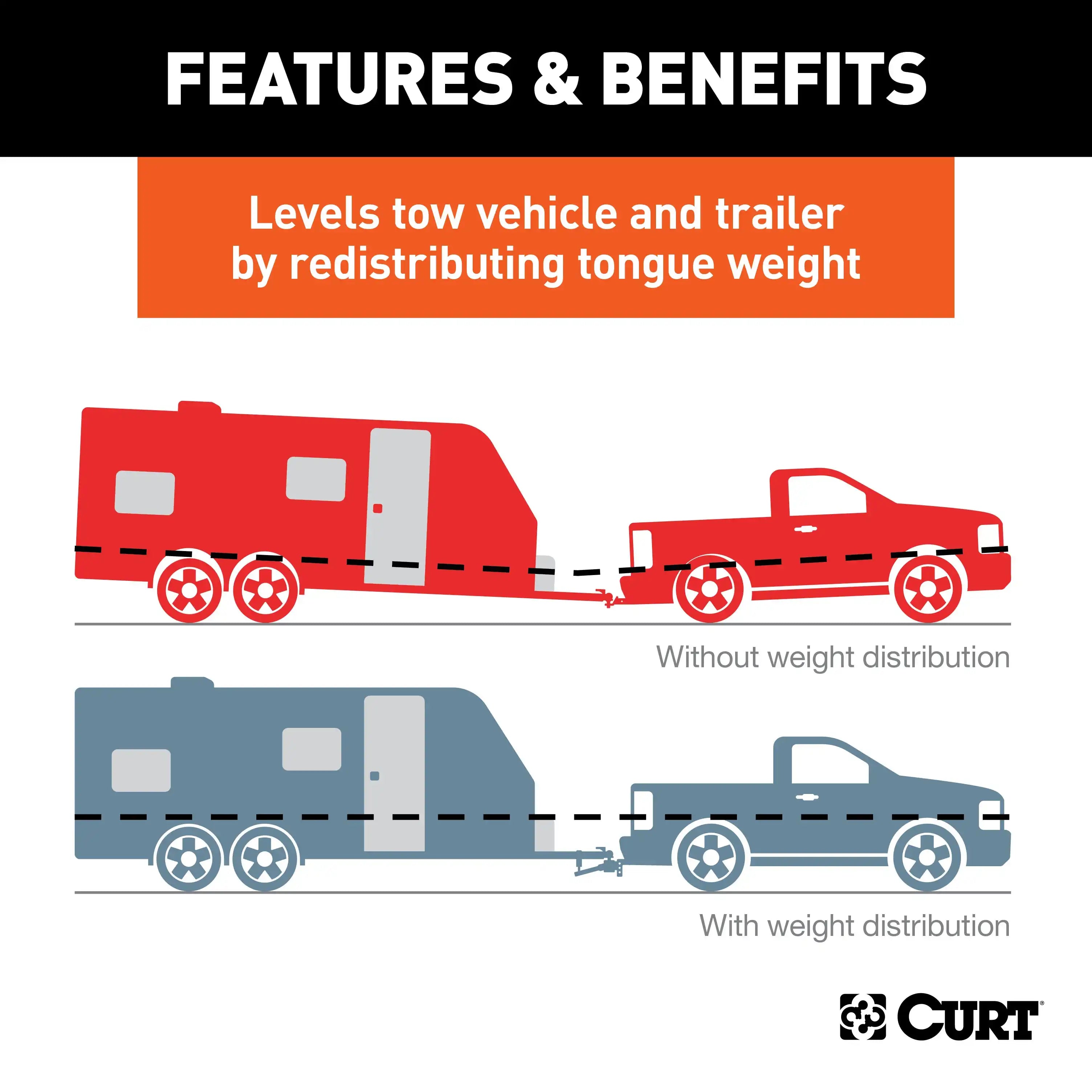

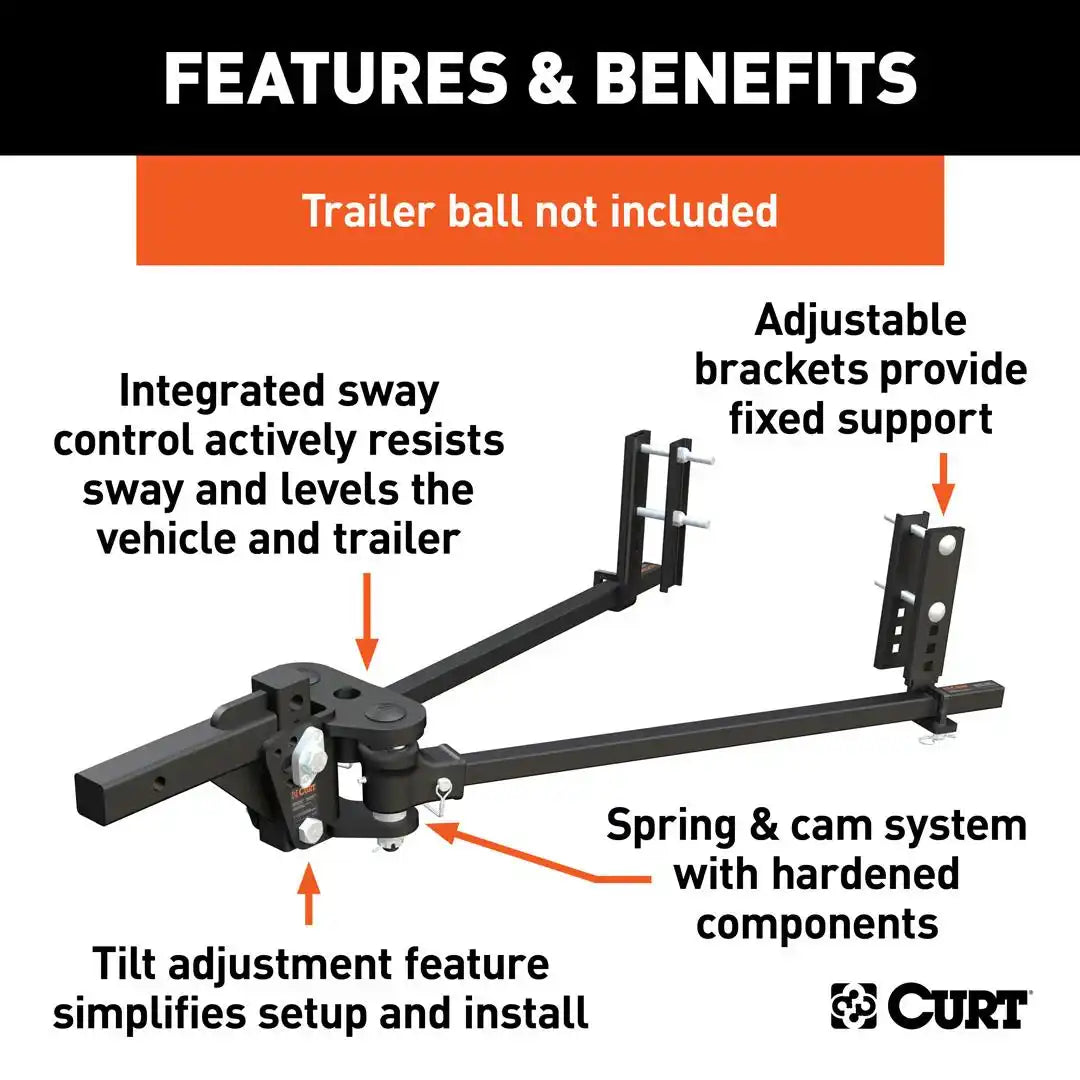

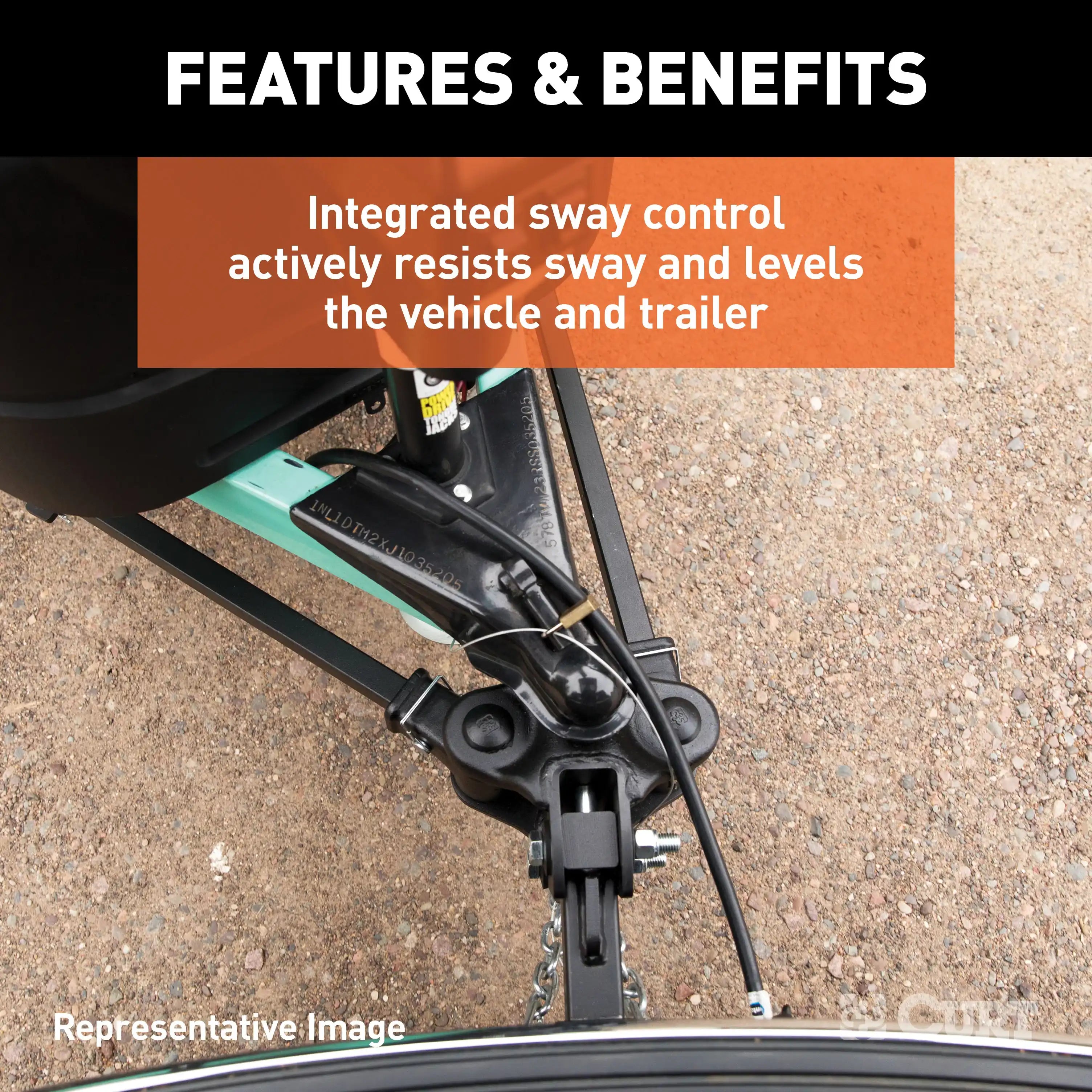

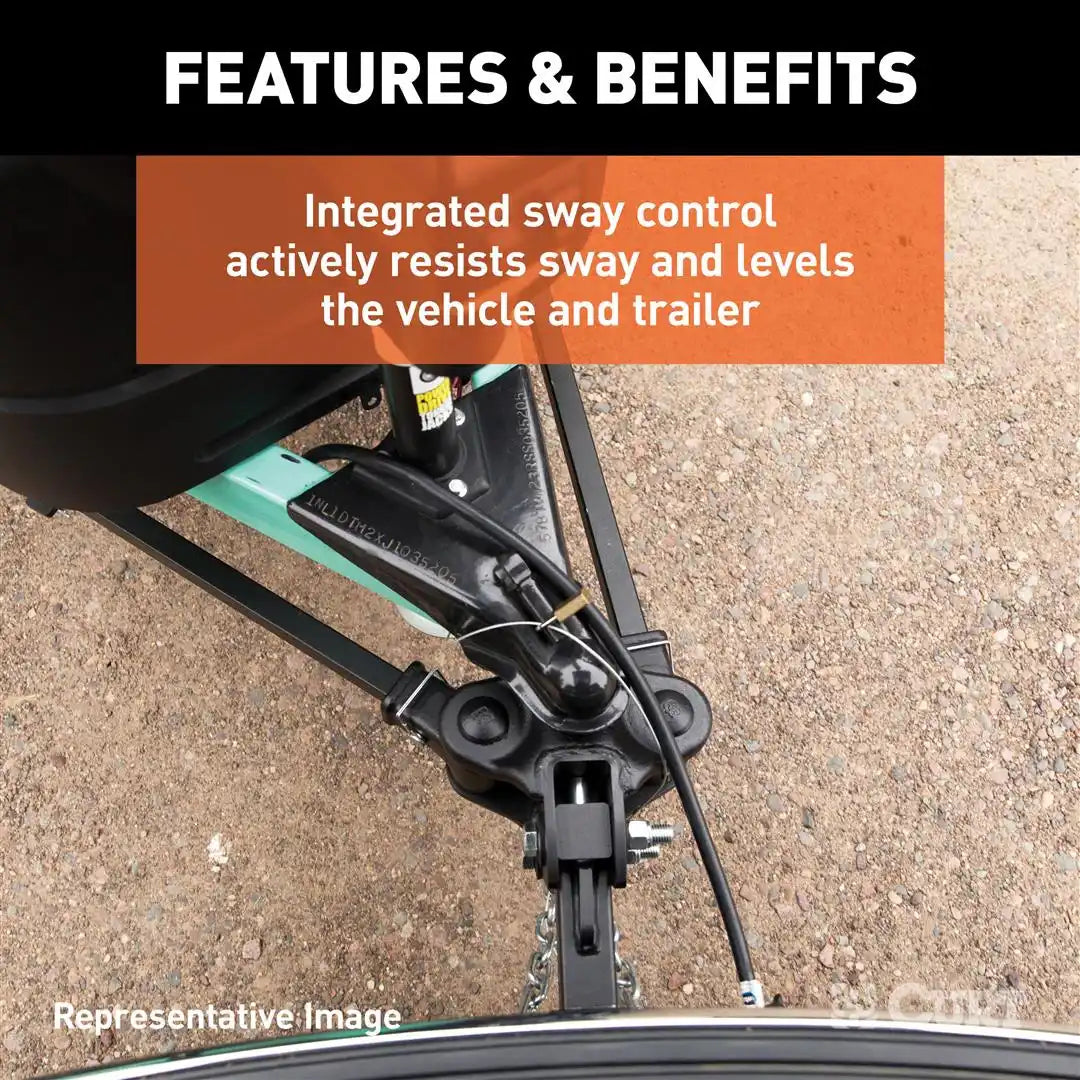

• Integrated Sway Control Actively Resists Sway And Levels The Vehicle And Trailer
• Welded Head With Cast Pieces Provides Solid Spring Bar Attachment

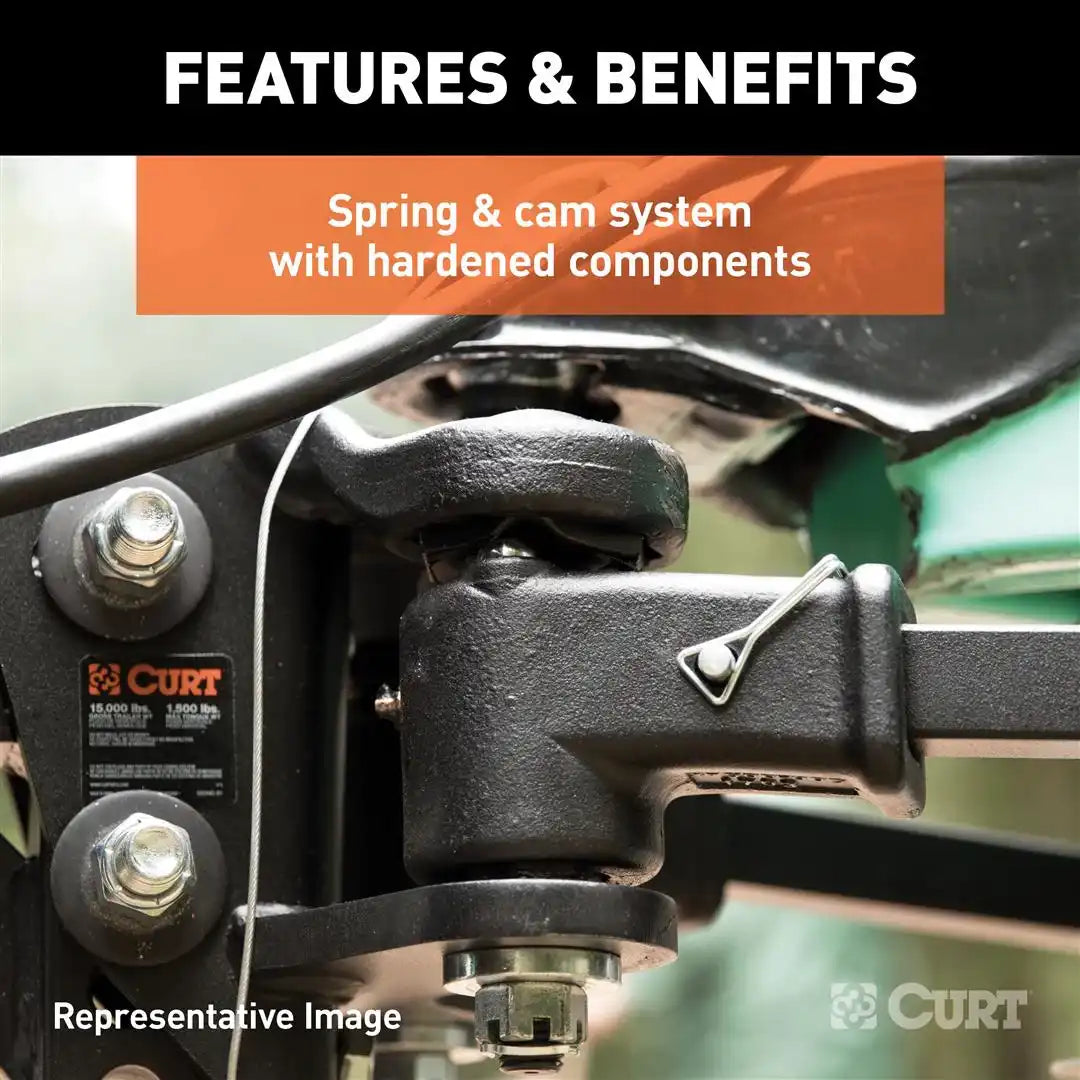

• Cam Springs Build Up Pressure For Integrated Sway Control

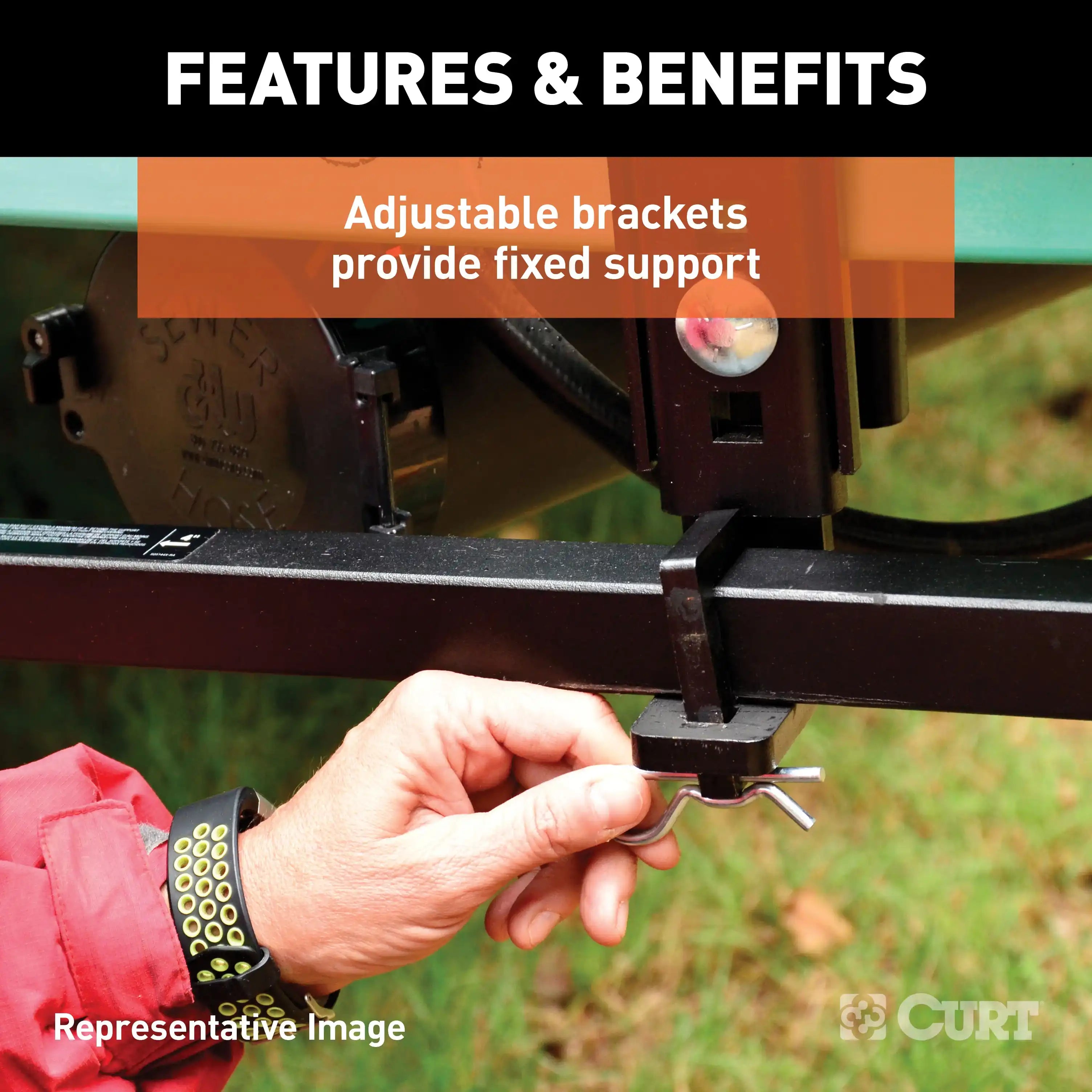

• Fixed Support Brackets Hold The Spring Bars In Place Laterally And Vertically

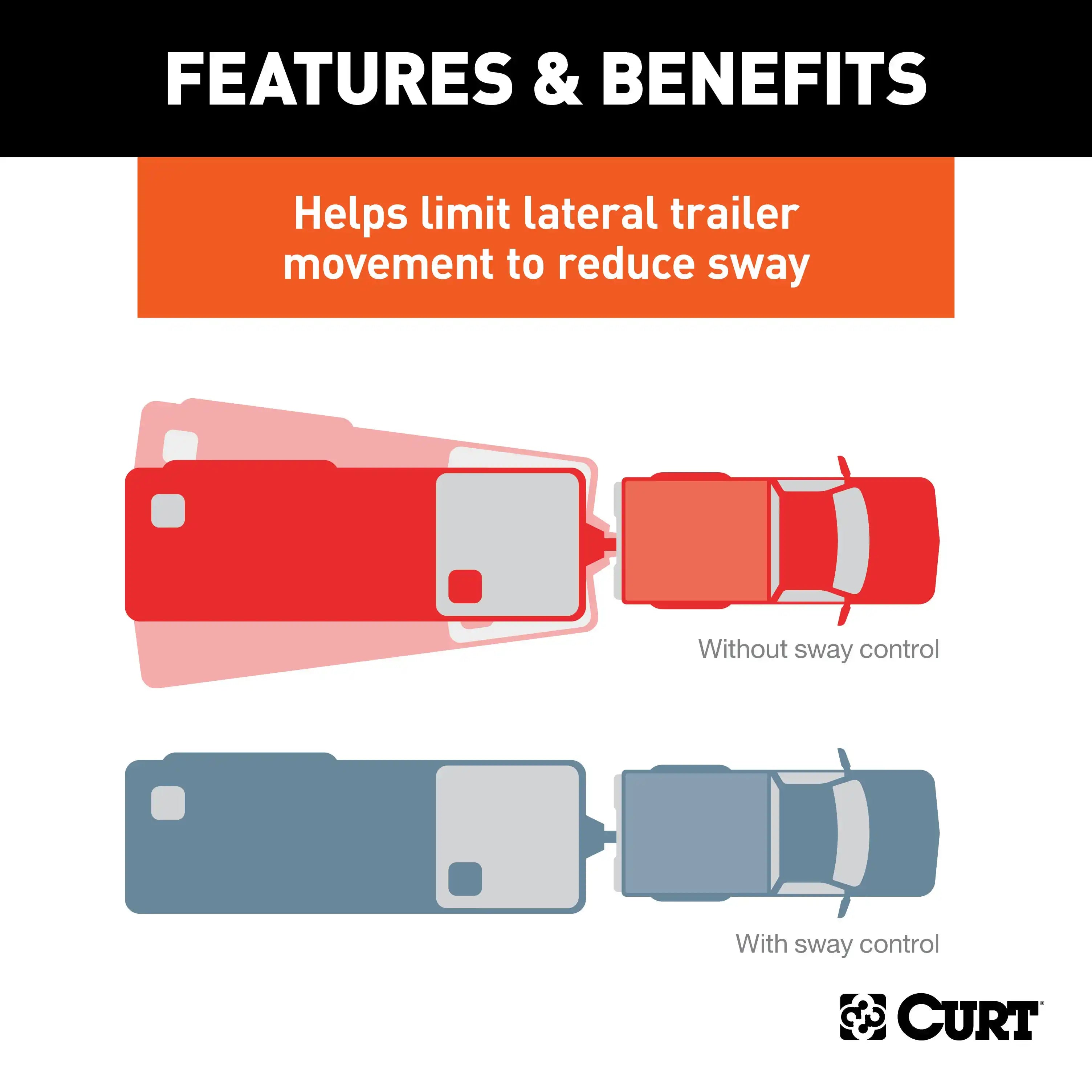

• Brackets Use Friction To Resist Lateral Movement, Replacing A Sway Control
• Equipped With Trunnion-Style, Forged Steel Spring Bars
• 12 Inch Adjustable Shank Fits 2 Inch X 2 Inch Receiver Tube Openings
• Hex Castle Nut Allows For Easy Adjustment For Different Trailers

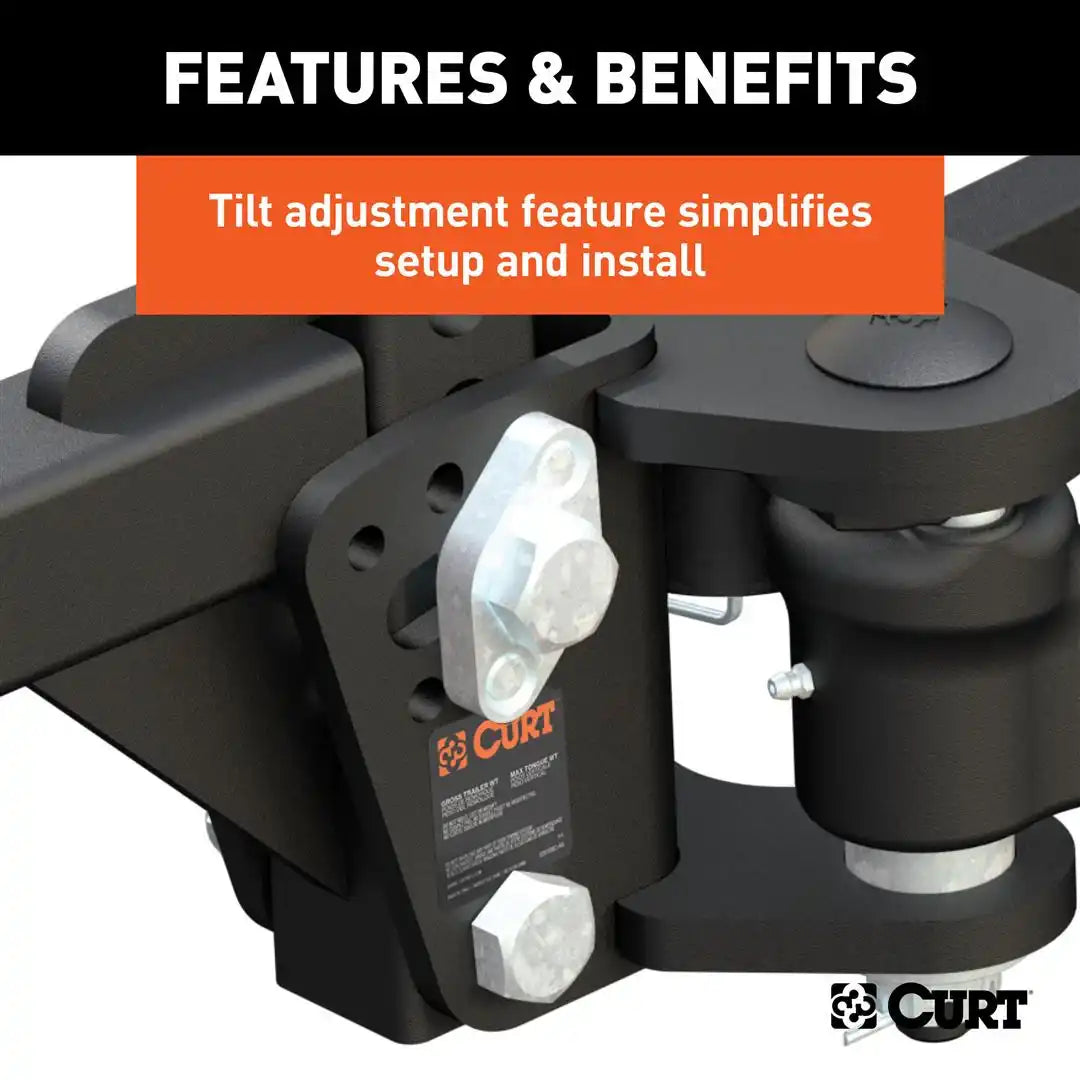

• Tilt Adjustment Feature Simplifies Setup And Installation
• Limited 10 Year Warranty
