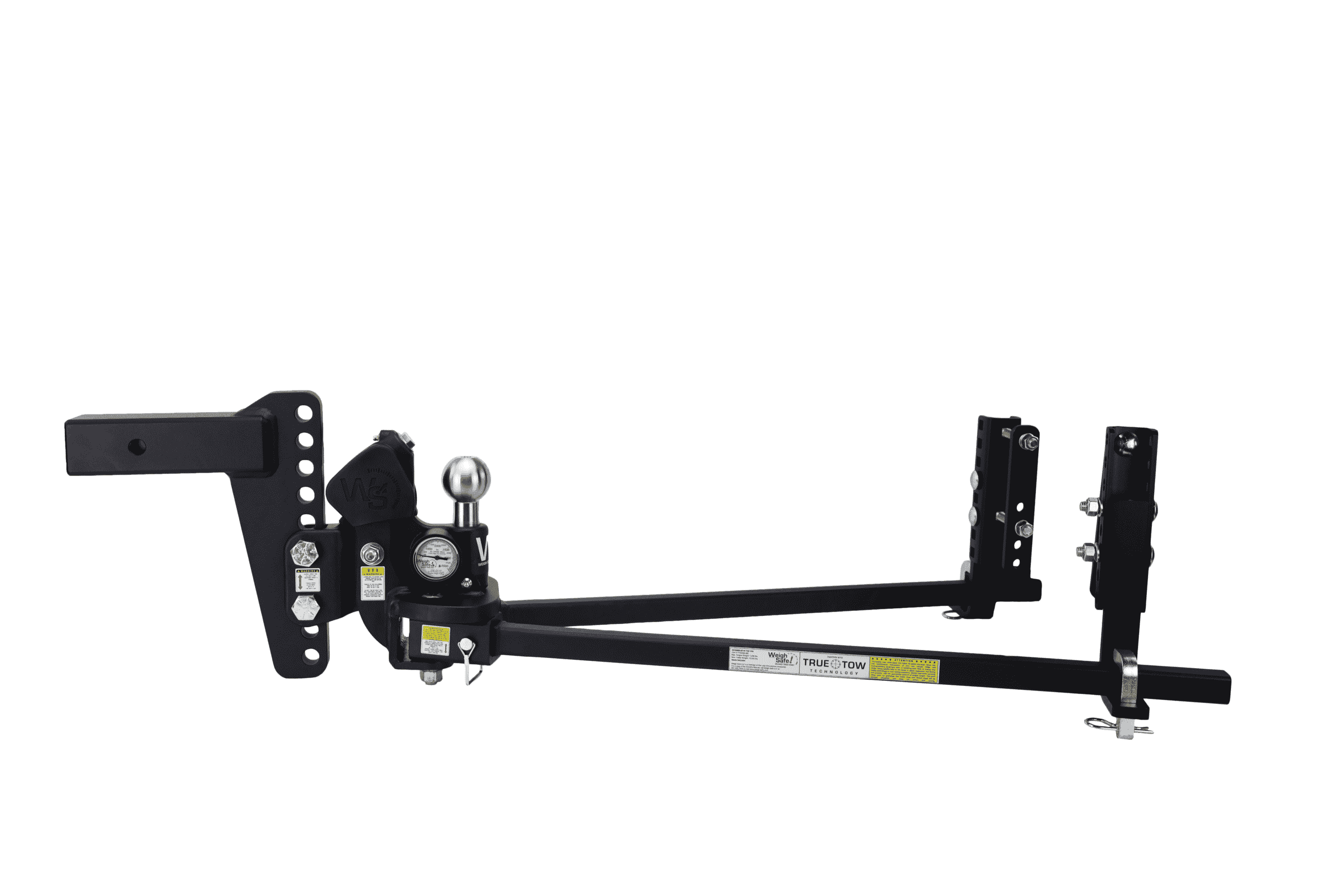

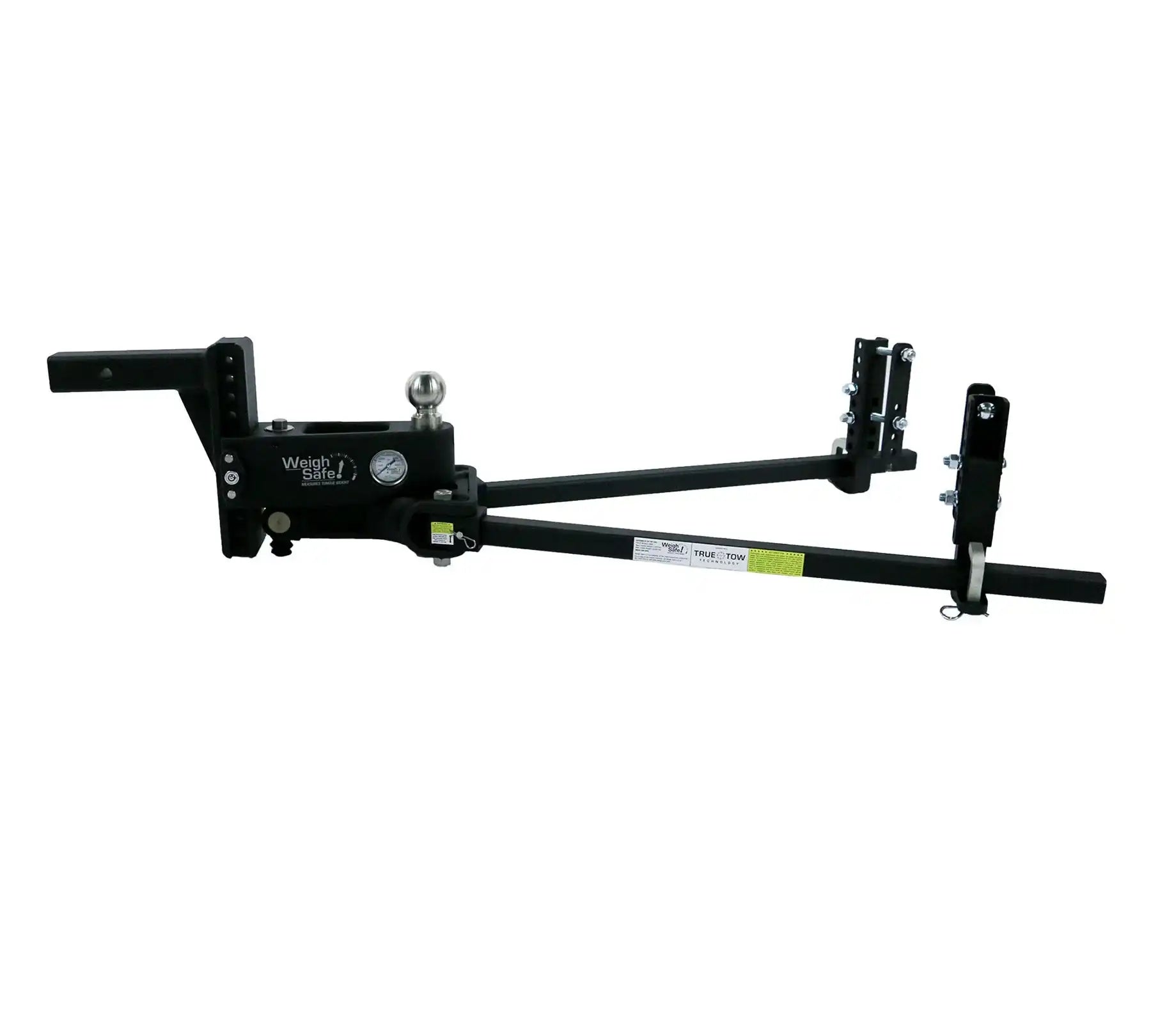

Along with the original Heavyweight version, the all new Weigh Safe True Tow Weight Distribution Hitch – Middleweight is a part of the True Tow family, measuring vehicular tongue weight and providing exact measurement and force needed to accurately redistribute weight across your towing platform. It also boasts the simplest and quickest installation process in the industry and comes in various drop lengths to fit any and all trailers! Check out our DTW Calculator

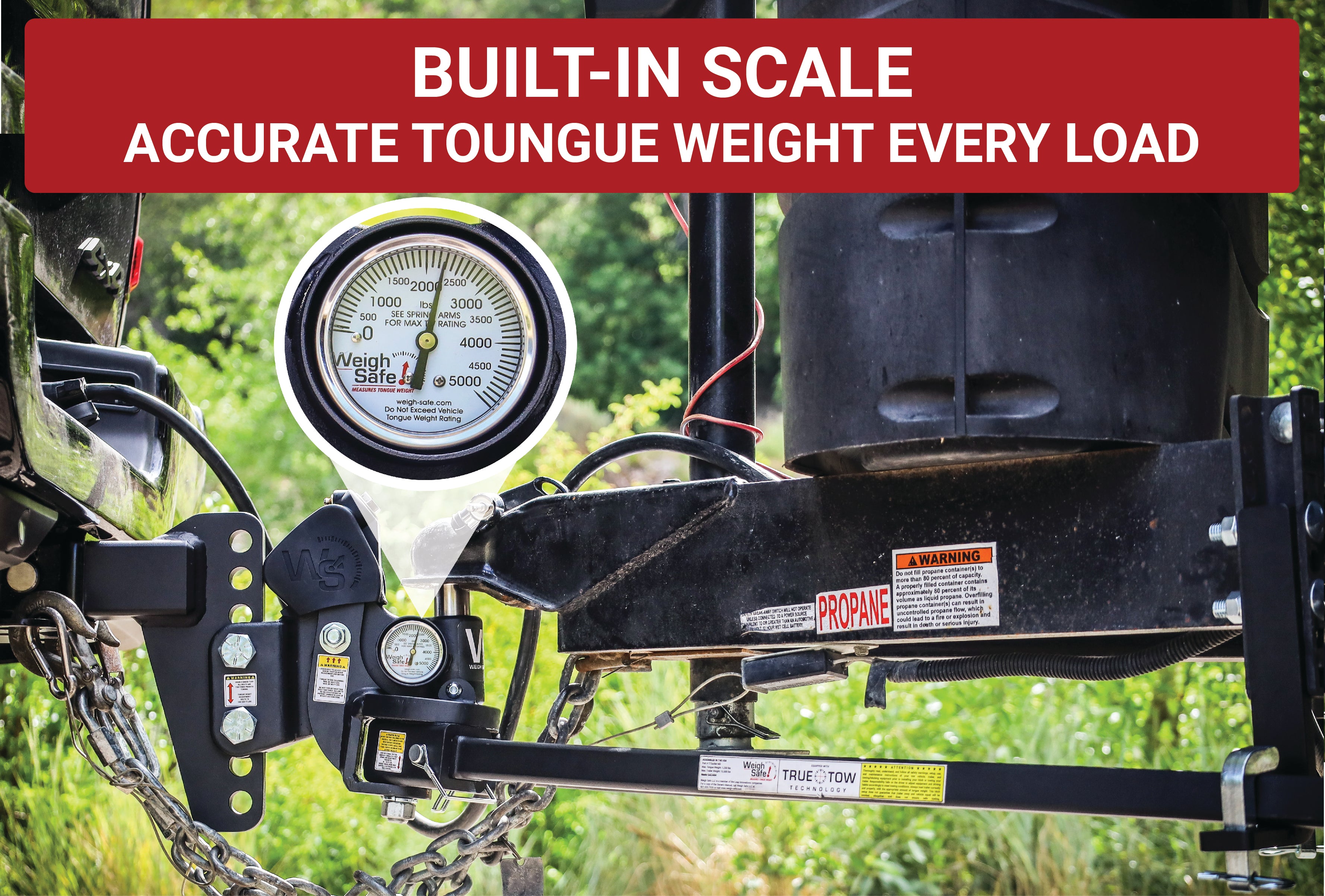

BUILT-IN SCALE

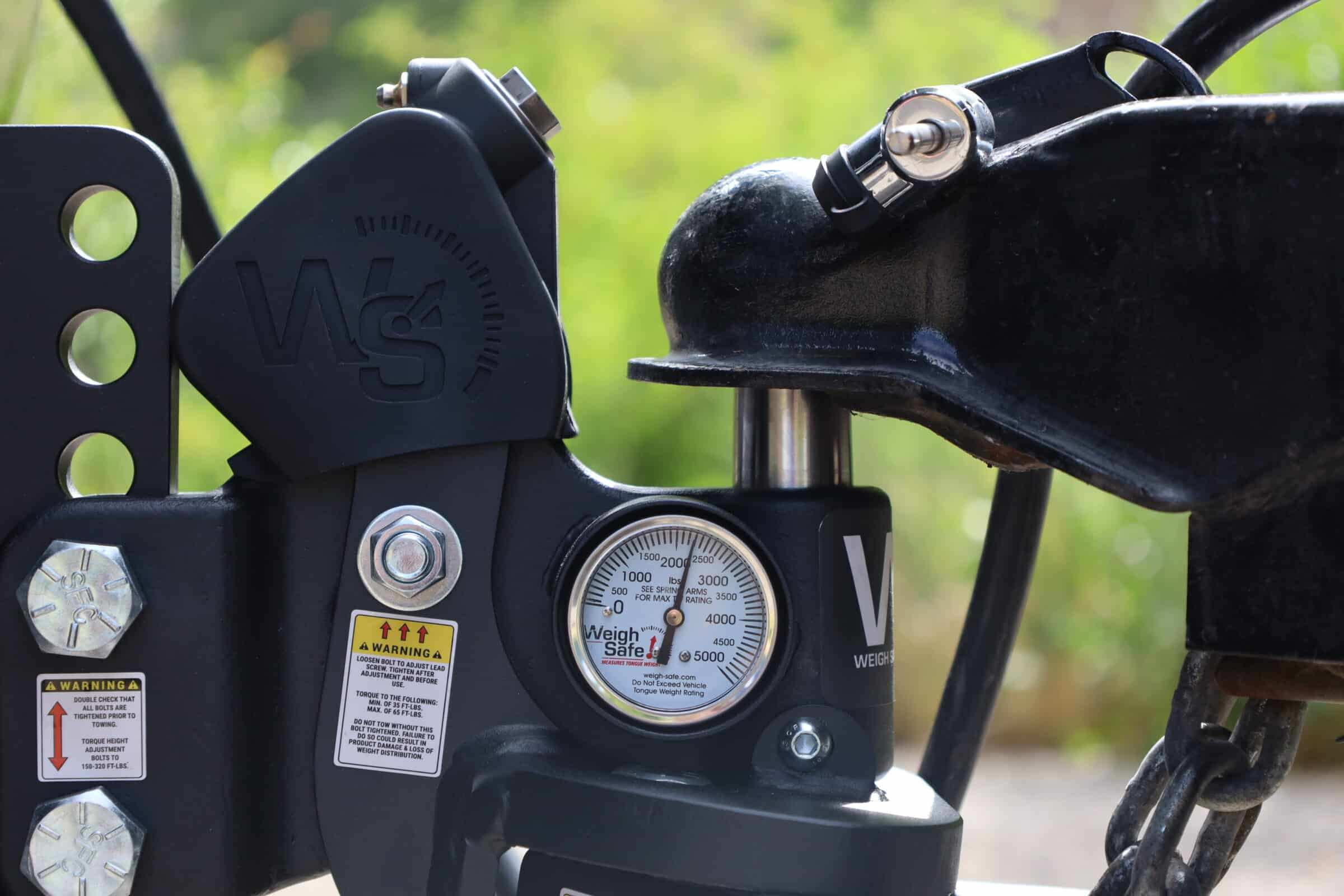

A built-in scale to measure both tongue weight to ensure 10-15% of GTW and distributed tongue weight to truly give you a distributed towing system.

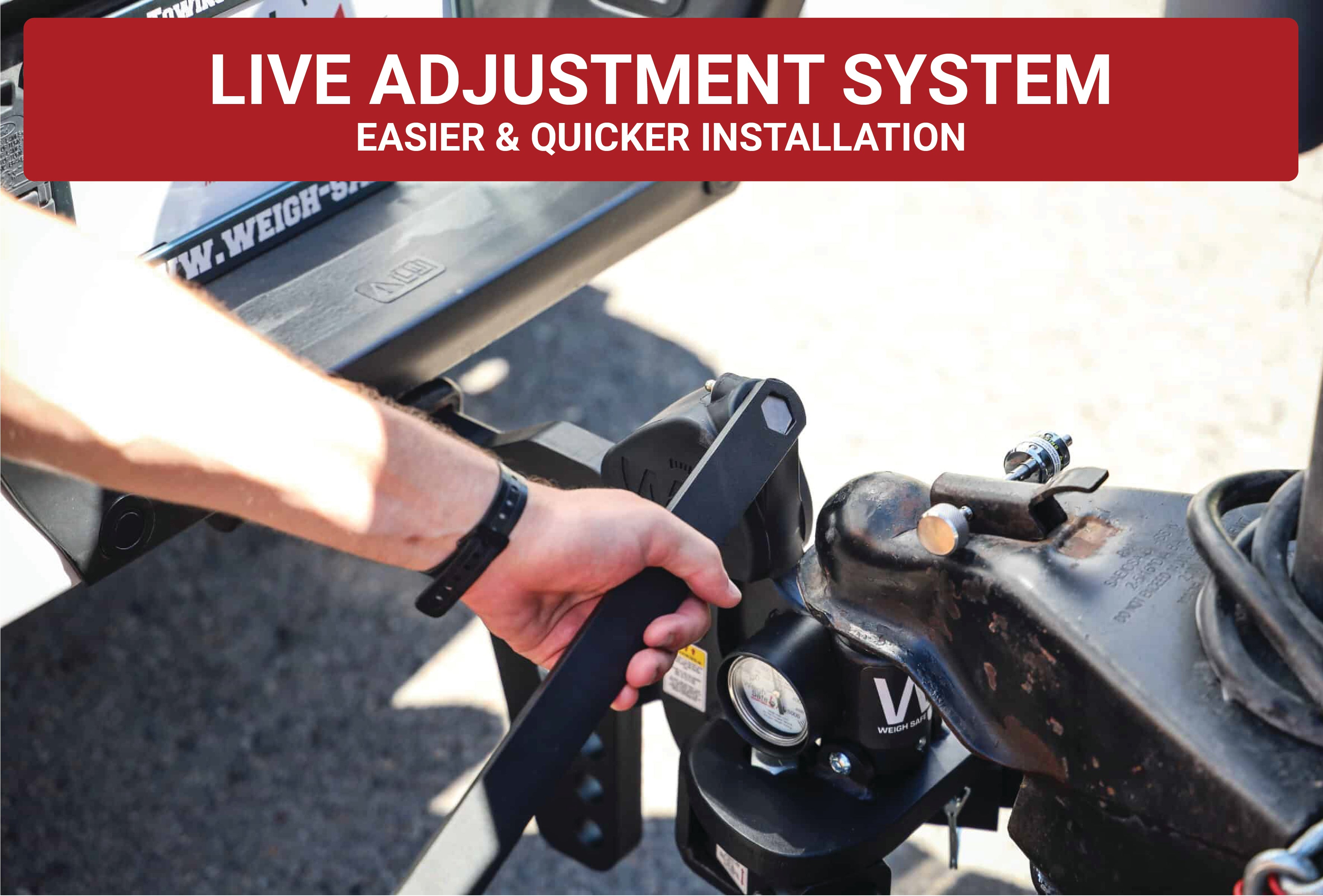

LIVE ADJUSTMENT SYSTEM

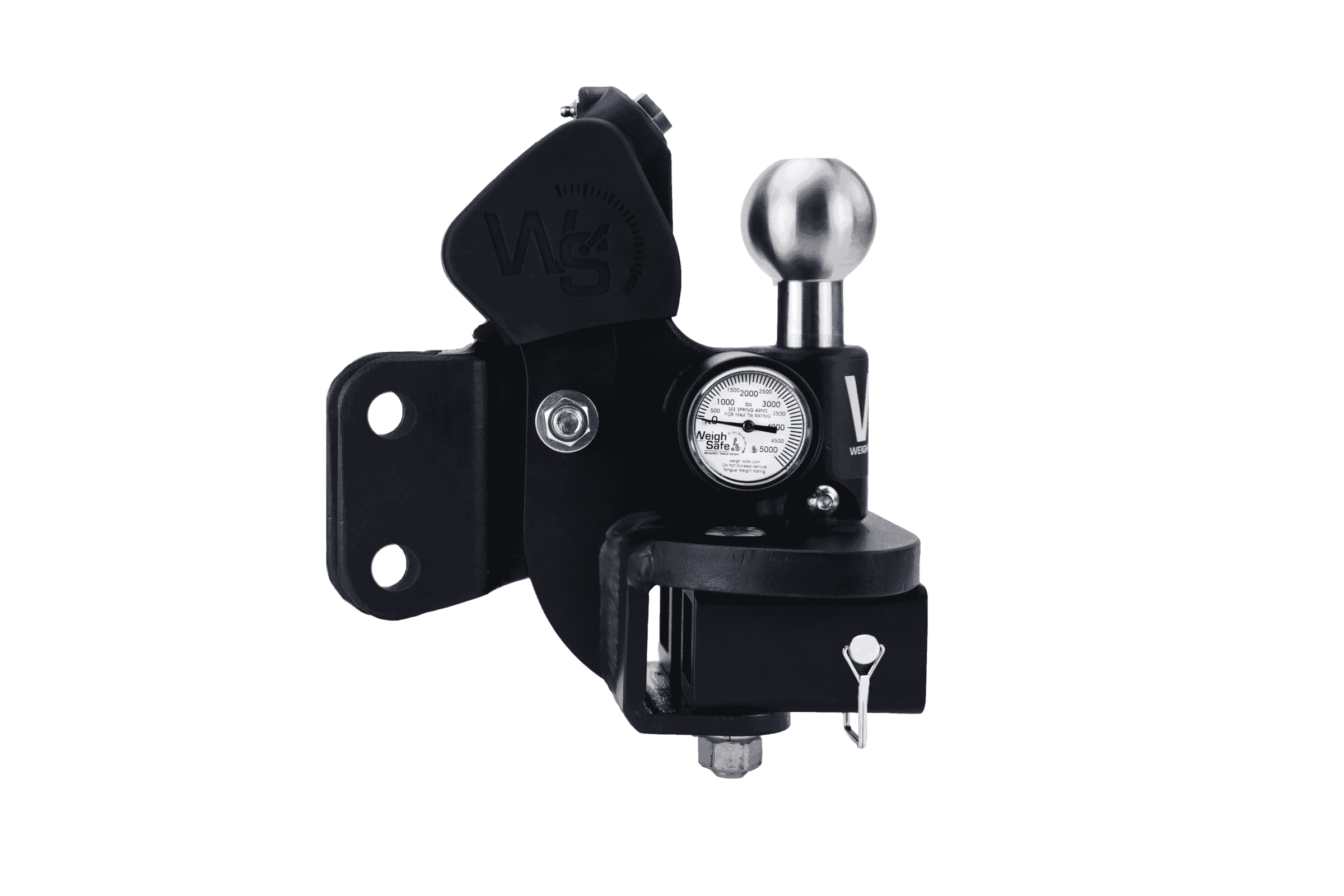

A live adjustment system built into the head assembly with an internal pivot point for quicker and easier installation. With the ability for anytime adjustment, this feature will save you a significant amount of time.

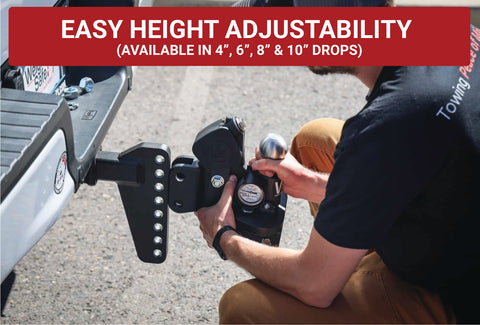

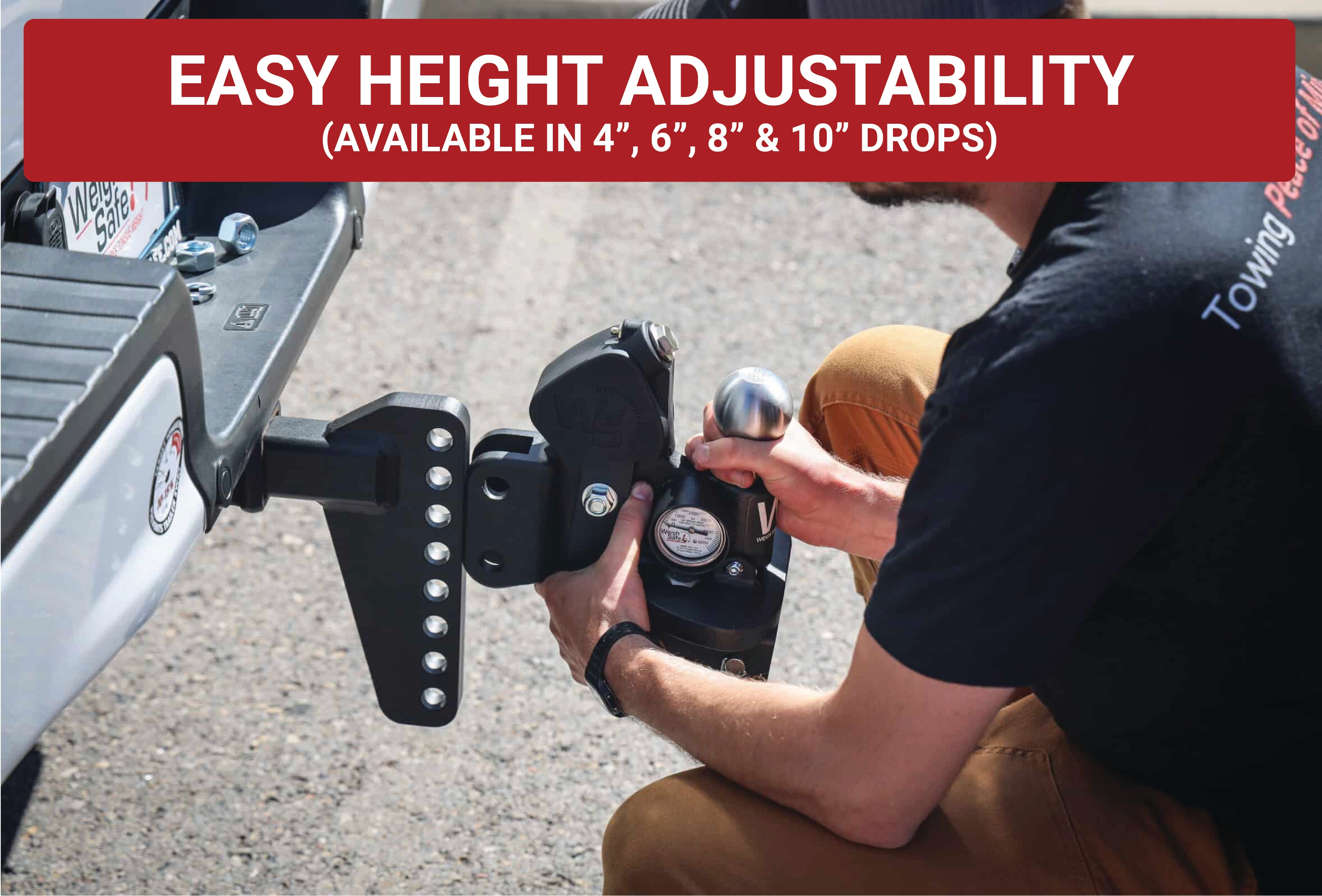

EASY HEIGHT ADJUSTMENT
Easy height adjustment with 1.25” hole increments for more accurate height adjustment which means no more torquing bolts!

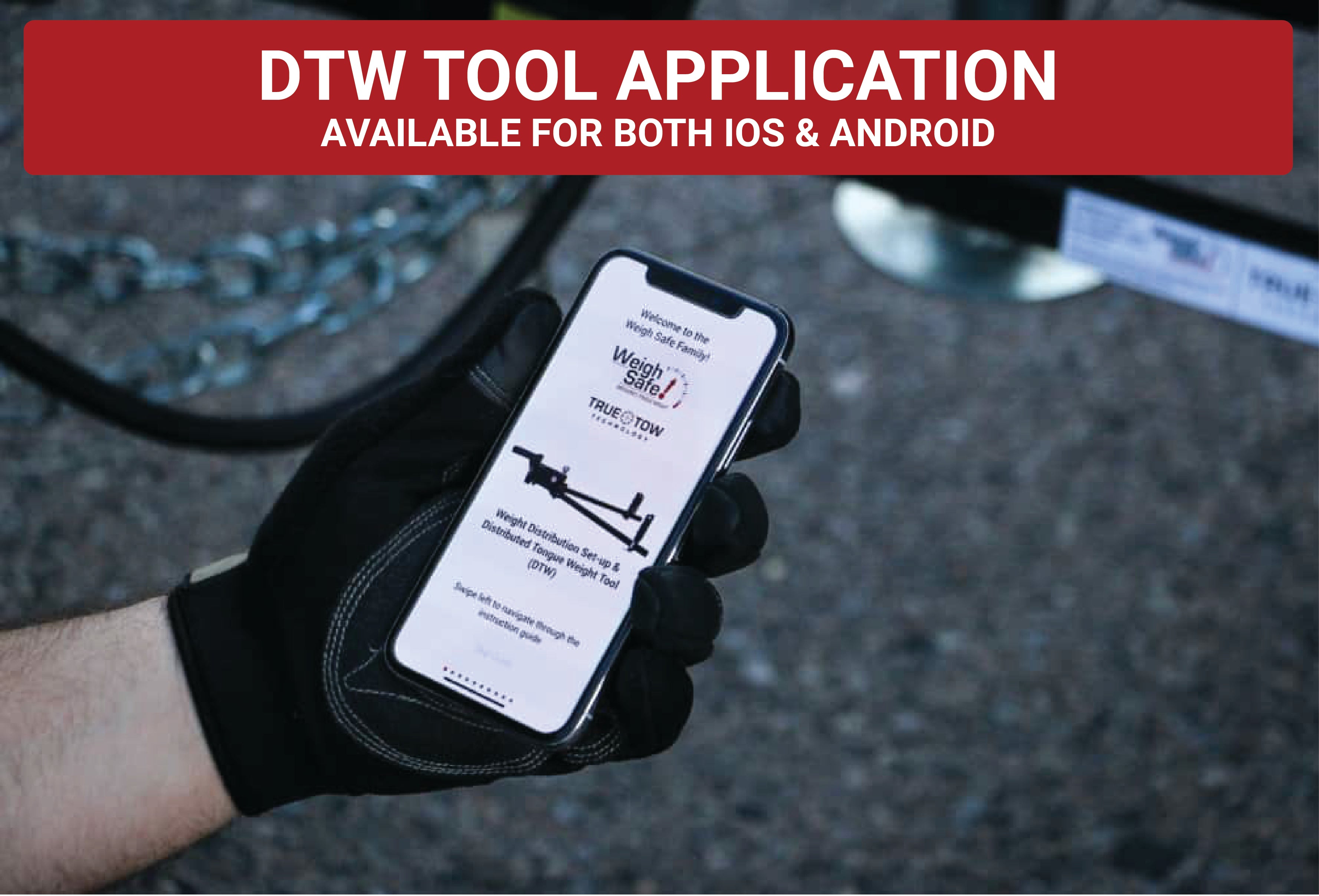

DTW TOOL
DTW (Distributed Tongue Weight) tool application for smartphones (android and IOS) or available on our website to set up the highly accurate distributed system. This tool outputs a DTW that the Weigh Safe gauge on the hitch will read when distributed correctly.

TRUE DISTRIBUTION
Truly distributes the tongue weight of the trailer between the back axle of the tow vehicle, and the axle(s) of the trailer and returns the lost weight off the front axle. This provides a safer and smoother ride.

ANTI-SWAY HITCH
Provides anti-sway friction areas that help reduce sway caused by wind or passing vehicles. These areas reside in the sway bar connection points in the head assembly and the trailer bracket connection points. The hitch head assembly, spring arms and trailer brackets are all vital components to aid in reducing trailer sway.

The True Tow™ Weight Distribution Hitch – Middleweight can be easily interchanged between different tow vehicles and trailers so you can put trailer brackets on as many trailers as you want!

Installation Guide

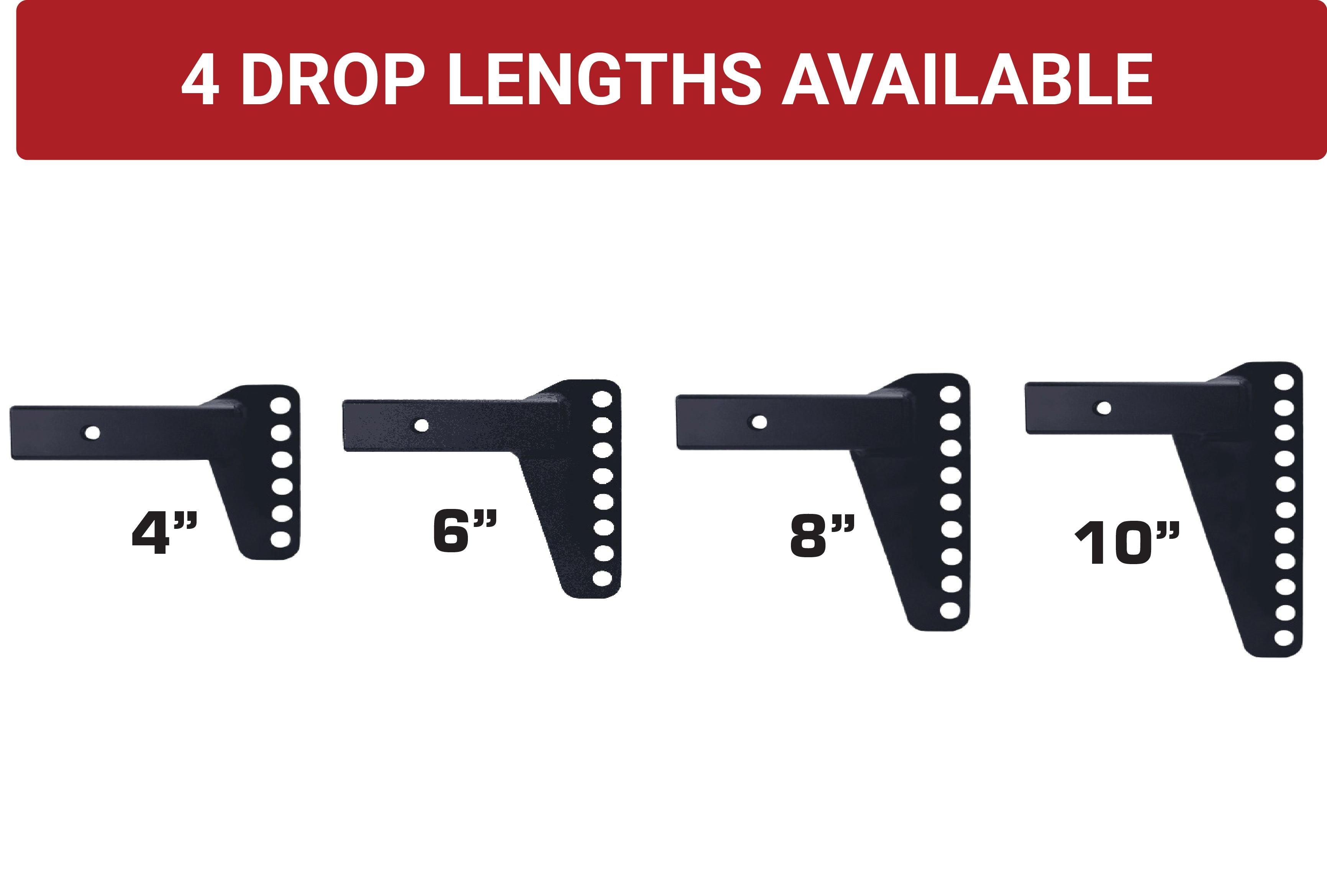

    DROP LENGTHS 4", 6", 8" OR 10" DROP LENGTHS
    Built-in Scale ✓

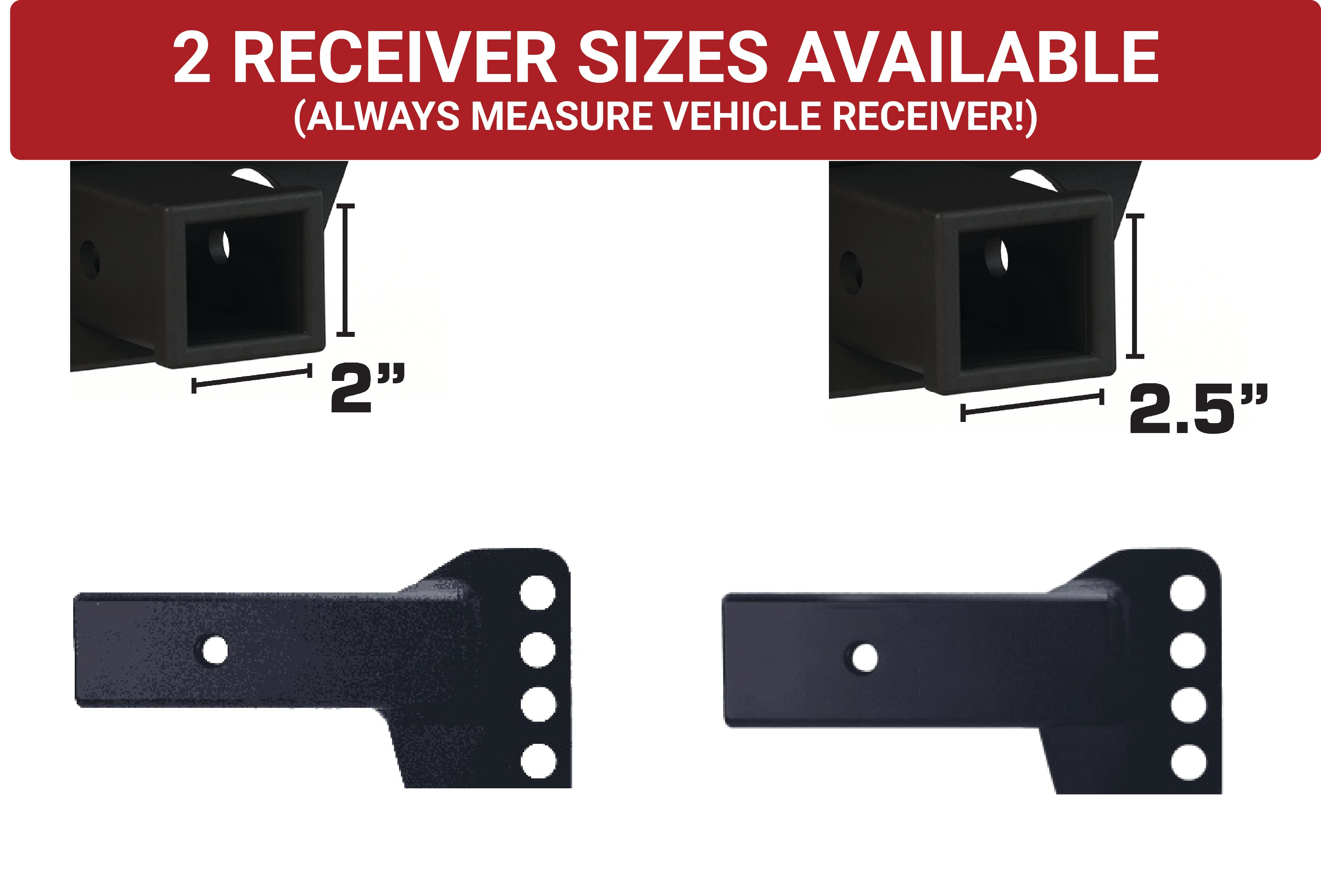

    Shaft 2" or 2.5"
    Tow Ball 2-5/16" Tow Ball Included - Not Interchangeable

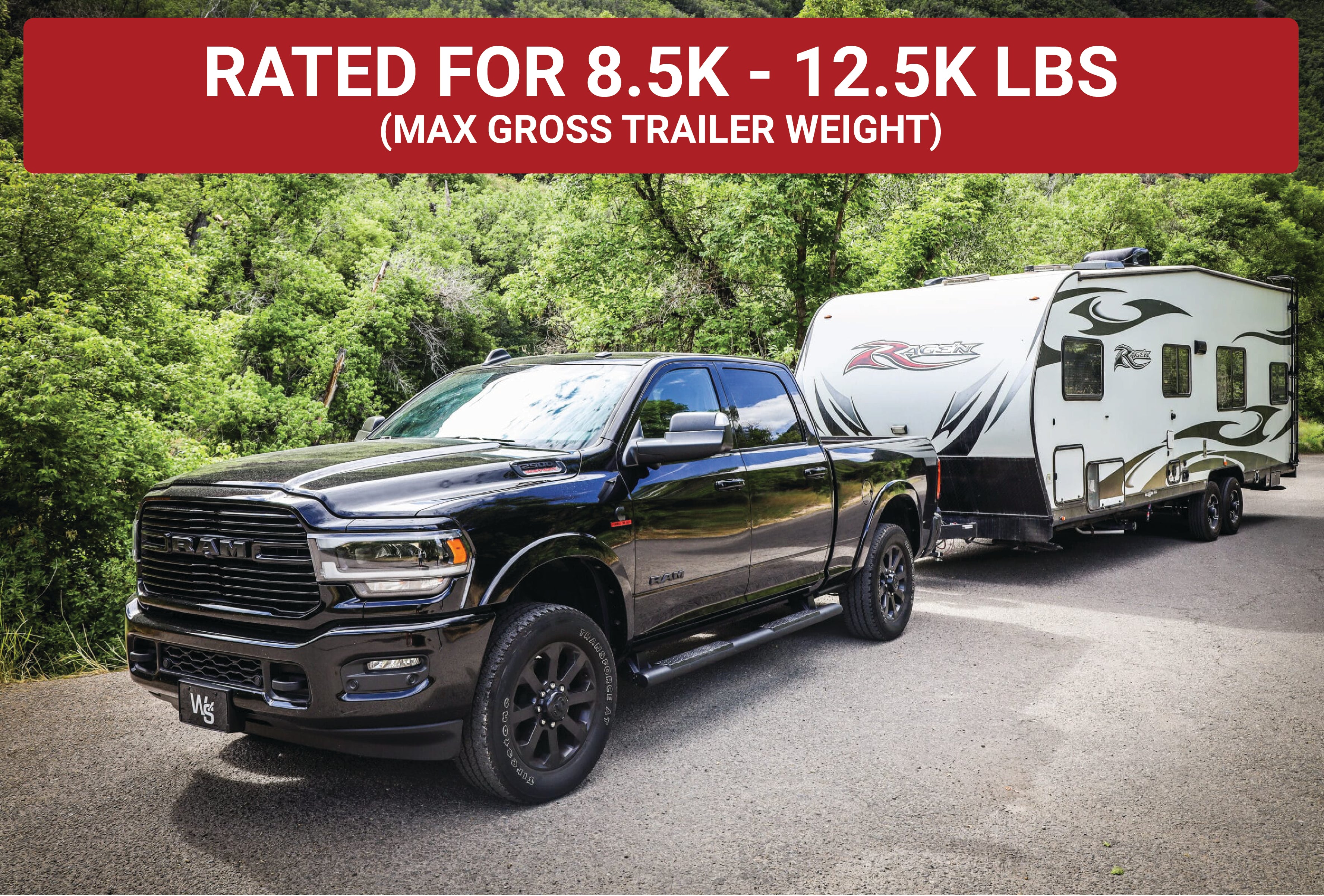

    Max GTW 8,500lbs
    12,500lbs
    (based off of spring arm size)
    Max Tongue Weight 850lbs (8,500lb spring arm)
    1,250lbs (12,500lb spring arm)
    1,250lbs (w/o spring arms)
    V5 & J684 Certified ✓
    Drop Hitch Adjustment 1.25" Increments
    Weight (2" and 2.5" Shank) 4" drop with 2" shank      = 108lbs
    4" drop with 2.5" shank   = 113lbs
    6" drop with 2" shank      = 110lbs
    6" drop with 2.5" shank   = 115lbs
    8" drop with 2" shank      = 111lbs
    8" drop with 2.5" shank   = 116lbs
    10" drop with 2" shank.   = 113lbs
    10" drop with 2.5" shank = 118lbs
    Ball Material Stainless Steel
    Rise All hitches may be used in rise position

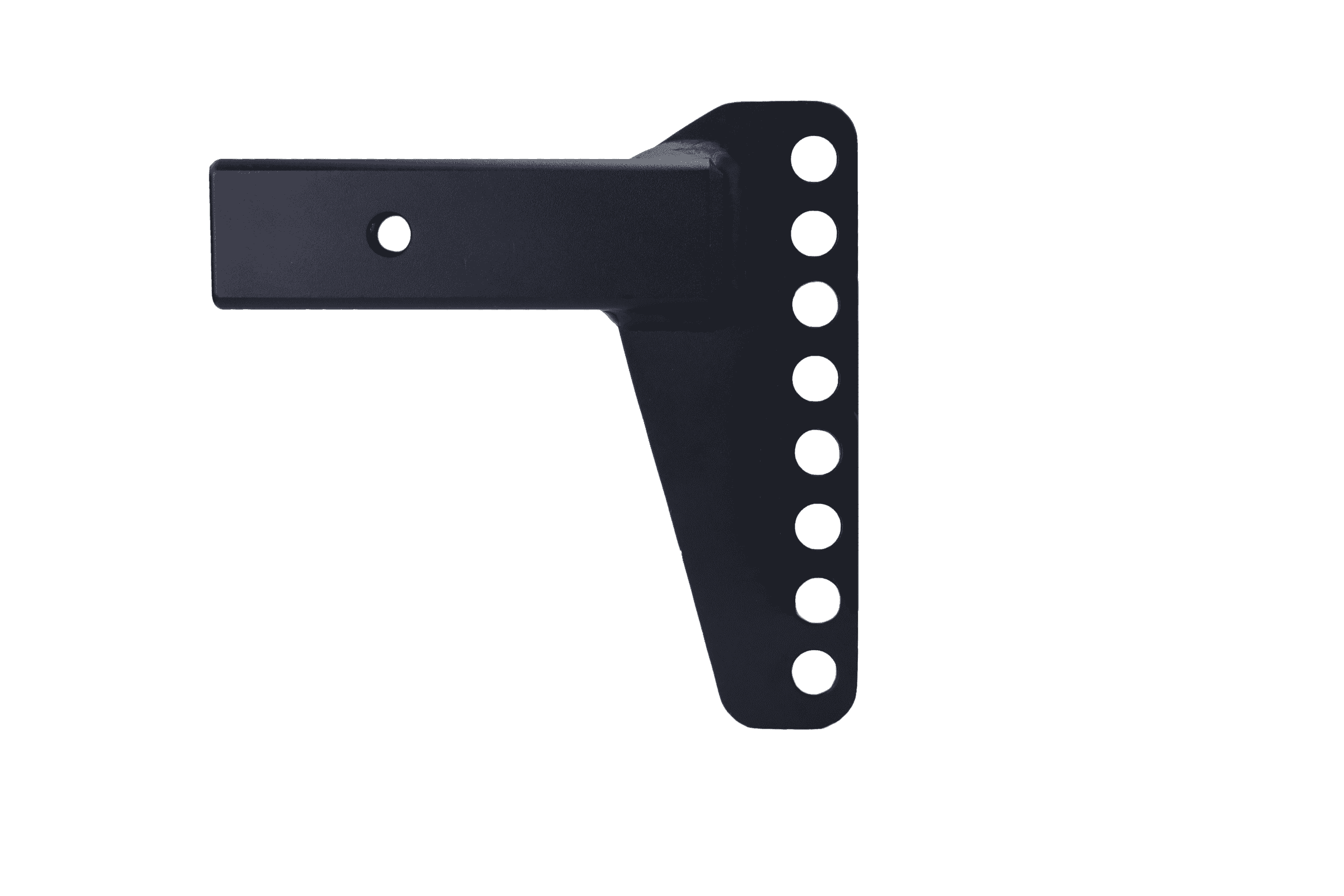

    Drawbar Length 4" drop = 7"
    6" drop = 9"
    8" drop = 11"
    10" drop = 13"
    Hitch Pin Hole 5/8" Diameter
    Trailer Compatibility Max Trailer Frame Height: 6 inches.
    *Note* If you have a larger frame we offer an 8" accessory bracket.
    Due to the length of the hitch some trailers may require their chains and breakaway cable to be extended and or remounted.
    Some sleeve locking couplers will not work with this hitch due to the spacing between the towball and the Lead Screw. Please see the dimension guide to make sure your coupler will fit.
